モデル：PS18 Series
PS18

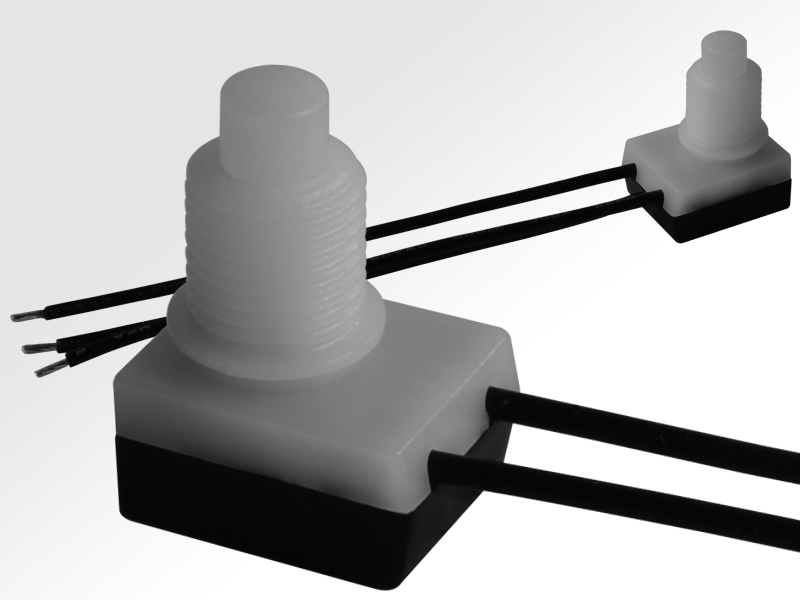

Push Switches for Lantern, Vechicle Roof Lighting, 2 or 3 Wires, 3A 250VAC, Fastened by Nut
Push-Button switches up to 3A 250VAC
Low Cost and easy mounting
End wire stripped and tin-dipped for easy connection
Off-On, or Off-ON-ON
加入詢問
Push Switches for Lantern, Vechicle Roof Lighting, 2 or 3 Wires, 3A 250VAC, Fastened by Nut
Push-Button switches up to 3A 250VAC
Low Cost and easy mounting
End wire stripped and tin-dipped for easy connection
Off-On, or Off-ON-ON
Feature
-
Rating: 3A 250VAC, 2A 10VDC
700mA 4.8VDC, 1mA 12VDC -
Contact resistance : 20m ohm max.
- Dielectric withstanding voltage : 1000AC for 1 minutes.
- Electrical life: 10,000 cycles
- Mechanical life: 30,000 cycles
-
Operstion force : 400 ~ 800 (Gram)
-
Actuator : POM (UL rated 94V-2 min).
-
Base : POM (UL rated 94V-2 min).
-
Case : POM (UL rated 94V-2 min).
-
Roller : POM (UL rated 94V-2 min).
-
Terminal : copper.
-
Terminal : Silver or tin plated copper alloy.
-
Wire : 1332#20AWG teflon.
-
Spring : Piano wire
Specification

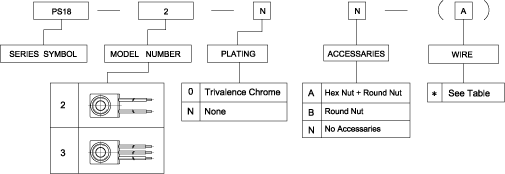

How to order
Item
|

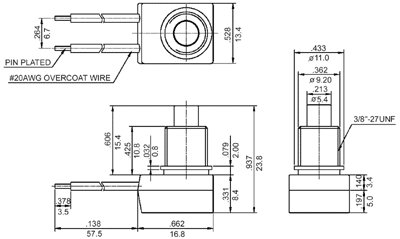

PS18-2-NN |
 |
|

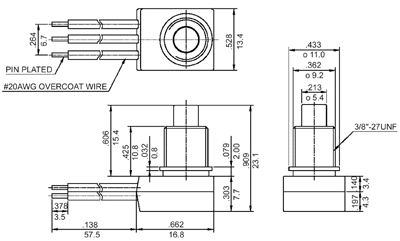

PS18-3-NN |
 |
|

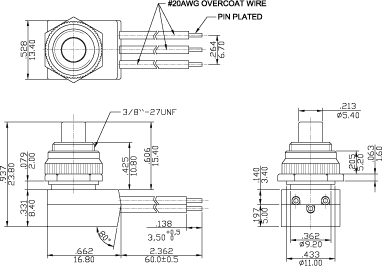

PS18-3-0AB |
.gif) |
|

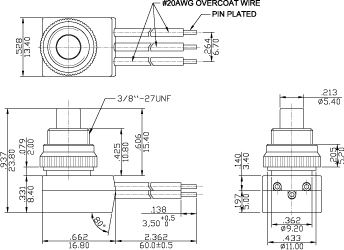

PS18-3-0BB |
.gif) |
