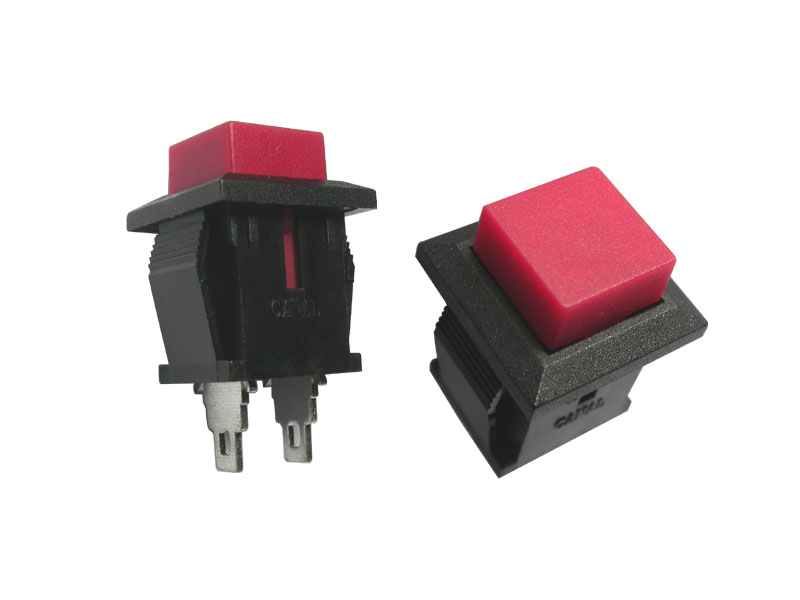

PS17-6, Push switch 3A 125VAC
PS17-6, Push switch 3A 125VAC
Feature
- Rating : 3A 125VAC, 1A 250VAC, 0.3A 50VDC
- Contact resistance : 20m ohm
- Insulation resistance : DC500V 100M ohm (min.)
- Dielectric voltage-withstand : 1,000 VAC for 1 minute
- Operation force : 250±100 gram
- Life cycle : 10,000 cycles
- Temperature range : 0 to + 65 degrees in Celsius
- Base : Nylon 94V-2
- Knob : Nylon 94V-2, red, gray or optional color
- Terminal : Brass
- Spring: Piano wire
- Contact : Silver plated brass or copper
- gold plating optional

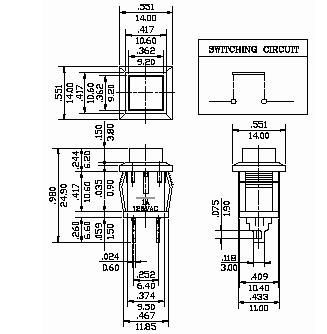

Specification
How to order
