モデル：PBM-8 Series
PBM-8
dia. 8mm Miniature Anti-vandal Metal Switches, Illuminated or Non-illuminated, SPST, IP65 Protection
dia. 8mm miniature anti-vandal metal switches.
Off-On function.
Illuminated with LED or non-illuminated.
Single pole, single throw, two terminals.
IP65 Protection.
加入詢問
dia. 8mm Miniature Anti-vandal Metal Switches, Illuminated or Non-illuminated, SPST, IP65 Protection
dia. 8mm miniature anti-vandal metal switches.
Off-On function.
Illuminated with LED or non-illuminated.
Single pole, single throw, two terminals.
IP65 Protection.
Feature
- 0.3A 36VDC
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 200,000 cycles
- Electrical life: 50,000 cycles
- Safety Approval: CE / CQC / RoHS
- SPST, OFF-ON; IP65 protection level
- Non-illuminated, spot illuminated (LED)
- Screw mounting, nut torque: 5~14Nm
- Operating force: 300gf+/-50gf
- Operating Stroke: 3.0mm +/- 0.3
- Switch button / shell material: SUS
- Switch base: PA66
- Operating Temperature: -20°C ~ 85°C
Specification

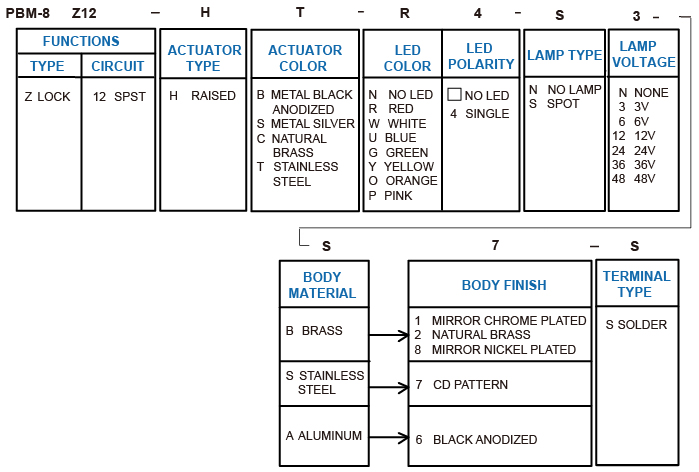

How to order
Item
|

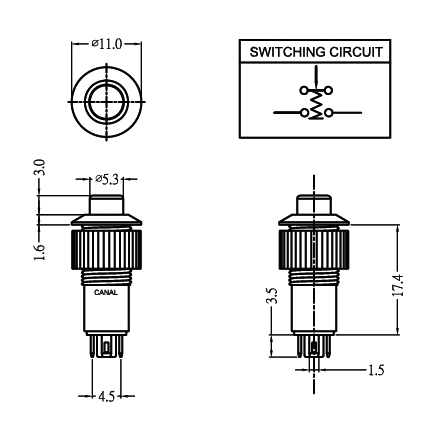

PBM-8Z12-HT-N-NN-S7-S |
 |
|

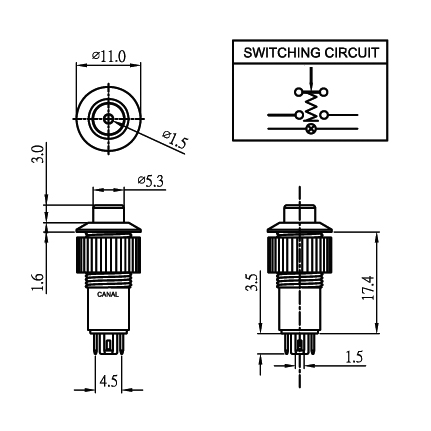

PBM-8Z12-HT-*4-S*-S7-S with LED light |
 |
