PBM-30Q

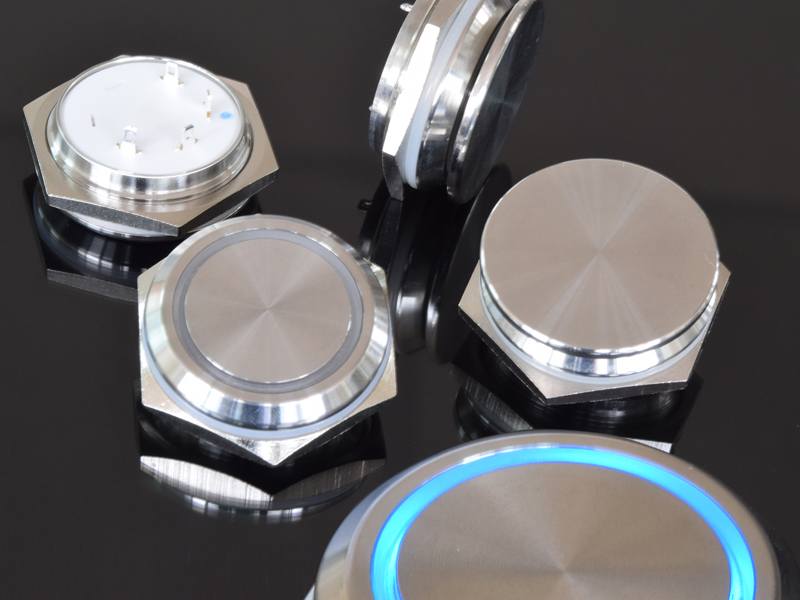

Low Profile Metal Switches, 30mm Bushing, Tactile Feeling, 200K Cycles, Ring-illuminated or None
Low profile anti-vandal switches, 12.4mm height only
Ring lighted or non-illuminated
Different LED colors for selection
Big size with bushing 30mm for easy switching
加入詢問
Low Profile Metal Switches, 30mm Bushing, Tactile Feeling, 200K Cycles, Ring-illuminated or None
Low profile anti-vandal switches, 12.4mm height only
Ring lighted or non-illuminated
Different LED colors for selection
Big size with bushing 30mm for easy switching
Feature
- Rating: 500mA 48VDC
- Contact resistance: 50m Ω (max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Operating Life: 200,000 cycles
IP65 & IK08 protection level - Non-illuminated and ring illuminated type
- M30 bushing, screw mounting
- Solder terminals
Low profile body, PA66 housing - Contacts: Silver alloy
- Operation stroke: 0.6mm+/-0.3mm
Specification

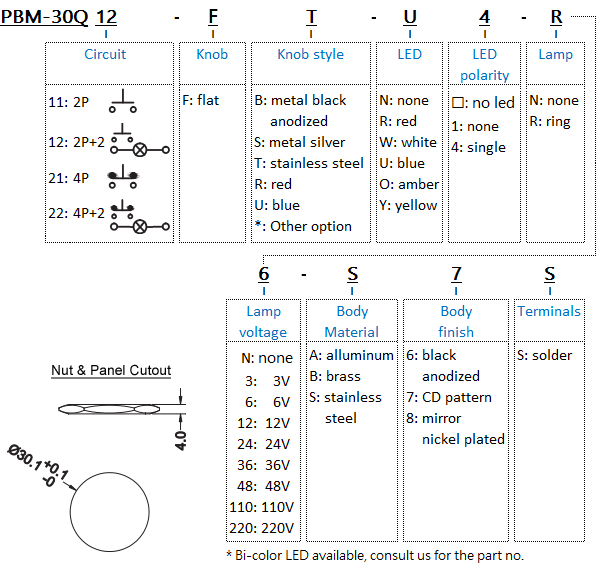

How to order
Item
|

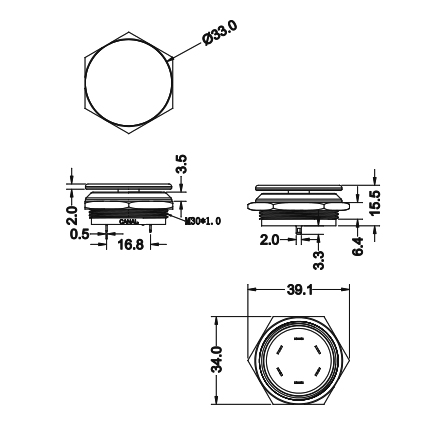

PBM-30Q11-FT-N-NN-S7S |
 |
|

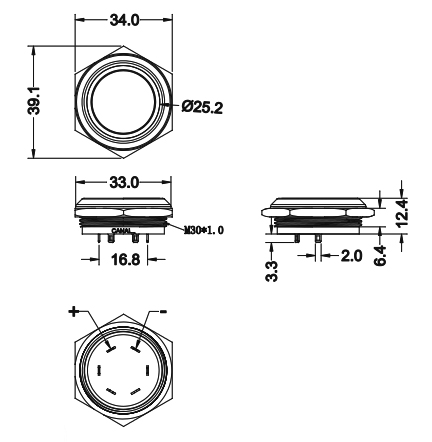

PBM-30Q12-FT-U4-R6-S7S |
 |
