モデル：PBM-30 Series
PBM-30 Series

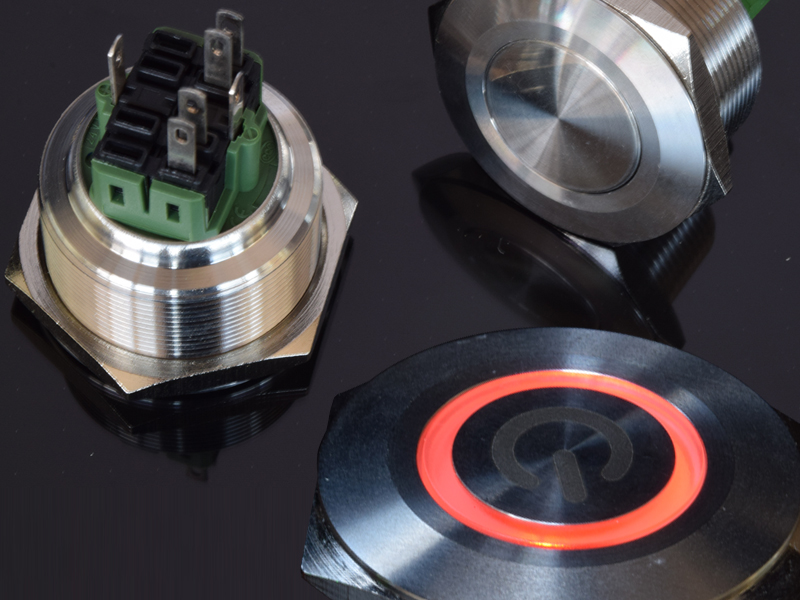

Anti-vandal Metal Switches, M30 Bushing, Momentary or Locking, 5A 250VAC, Lighted or Unlighted
Anti-vandal push button switches
Bushing 30mm mounted by fastening the screw
Non-illuminated, spot or ring illuminated
Various circuit options
加入詢問
Anti-vandal Metal Switches, M30 Bushing, Momentary or Locking, 5A 250VAC, Lighted or Unlighted
Anti-vandal push button switches
Bushing 30mm mounted by fastening the screw
Non-illuminated, spot or ring illuminated
Various circuit options
Feature
- Rating: 5A 250VAC (CE)
- Contact resistance: 50m Ω (max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Operating Life: 100,000 cycles
- IP65, IK08 protection level
- Non-illuminated and ring, spot, power symbol illuminated type
- M30 bushing, screw mounting
- Solder terminals
- Momentary or locking functions
- Various color-finishings available
- LED voltage to be designated following the customer's requirement
Specification
How to order

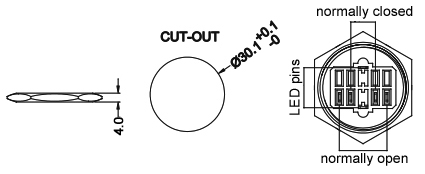

Nut, Panel Cutout & Circuit Illustration
Item
|

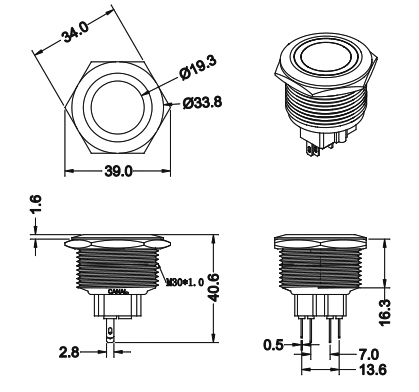

PBM-30M21-FT-N-NN-S7S |
 |
|

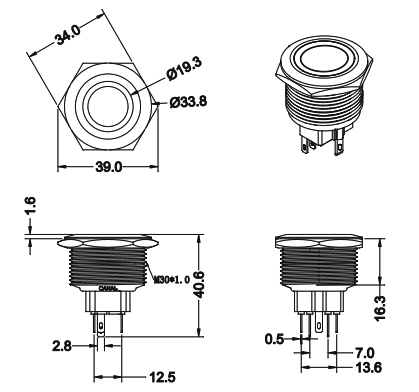

PBM-30M22-FS-U1-R24-S7S |
 |
|

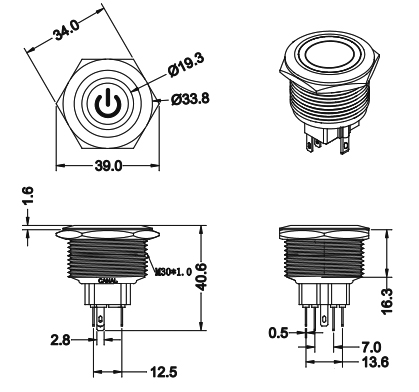

PBM-30Z22-FS-O1-Q12-S7S |
 |
