モデル：PBM-16 Series
PBM-16

Vandal-proof push switches, M16 Bushing, Illuminated or Non-illuminated, SPDT or DPDT



Anti-Vandal Pushbutton Switches, Up to 3A 250VAC, Bushing 16mm, illuminated or non-illuminated

SPDT, DPDT
加入詢問
Feature



  • Rating: 3A 250VAC (CE)
  • Contact resistance: 50m Ω (max.) initial
  • Insulation resistance: 100M Ω (min)
  • Dielectric strength : 2,000VAC for 1 minute
  • Mechanical life: 200,000 cycles
  • Electrical life: 50,000 cycles
  • IP65 protection level
  • Non-illuminated, ring or spot illuminated type
  • 1, 2 pole circuitry; OFF-(ON), OFF-ON, ON-(ON), ON-ON
  • M16 bushing, screw mounting
  • Optional case material and surface treatment
  • Solder terminals or screw terminals
Specification

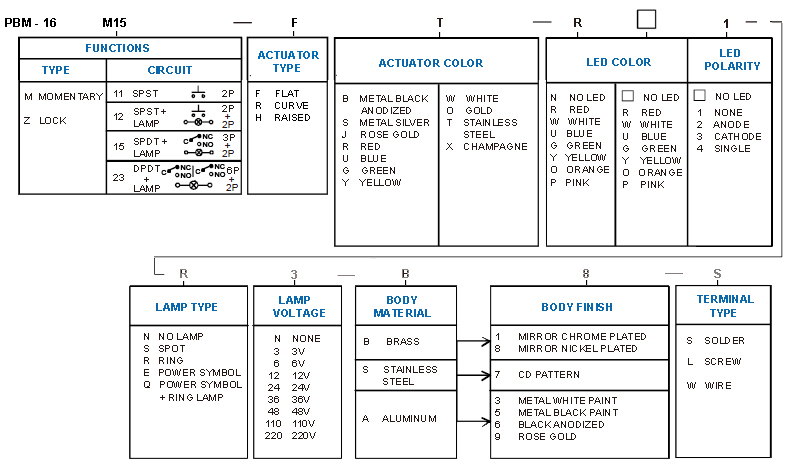

How to order

Item

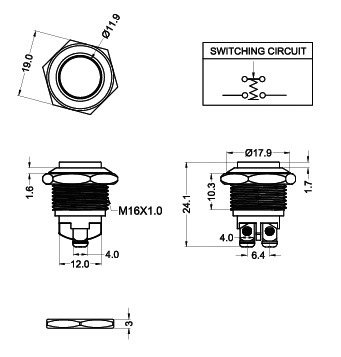

PBM-16M11-HS-N-NN-B8-L

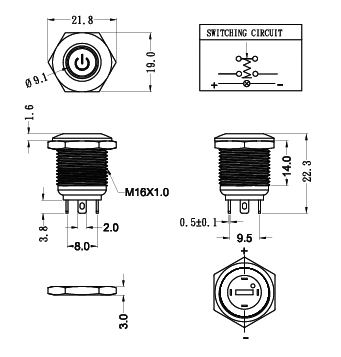

PBM-16M12-FS-U1-Q3-B8-S

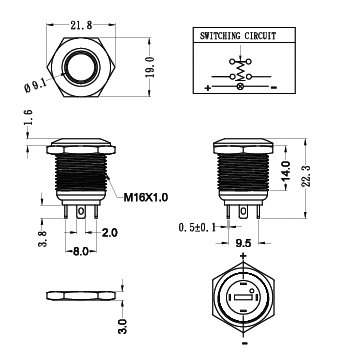

PBM-16M12-FT-R1-R3-B8-S

PBM-16M11-FS-
N-NN-S7S

PBM-16M11-FS-
N-NN-B1S

PBM-16M11-HS-
N-NN-B1S

PBM-16M11-HS-
N-NN-S7S

PBM-16M11-HS-
N-NN-S7S

PBM-16M11-RS-
N-NN-B8S

PBM-16M11-RS-
N-NN-S7S

PBM-16Z13-HS-
N-NN-B1S

PBM-16M11-FS-
U1-R3-S7S

PBM-16Z15-FS-
G1-R6-S7S

PBM-16Z23-FS-
R1-S6-S7S

PBM-16Z23-HS-
U1-R3-S7S
