モデル：PBM-12 Series
PBM-12
Mini anti-vandal switch M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Mini Anti-vandal switches 2A 250VAC, Illuminated or Non-Illuminated
M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Nut and rubber ring attached for installation
加入詢問
Mini anti-vandal switch M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Mini Anti-vandal switches 2A 250VAC, Illuminated or Non-Illuminated
M12 bushing, illuminated or non-illuminated, OFF-ON or momentary
Nut and rubber ring attached for installation
Feature
- 3A 250VAC (CE)
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 2,000VAC for 1 minute
- Mechanical life: 500,000 cycles
- Electrical life: 100,000 cycles
- SPST OFF-(ON), OFF-ON functions
- IP65 & ik08 protection level
- Non-illuminated, ring, spot illuminated
- M12 bushing, screw mounting
- Aluminum alloy, brass or Stainless steel body material
- Solder, screw terminals
Specification

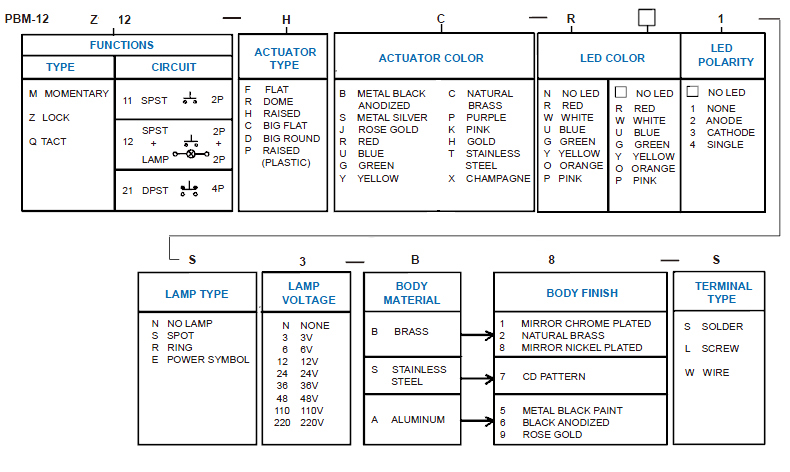

How to order
Item
|

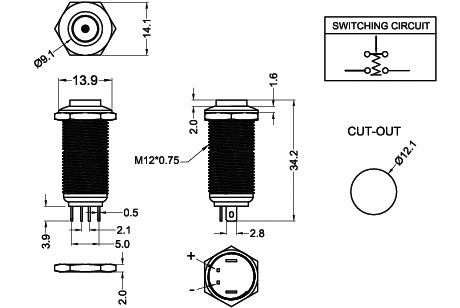

PBM-12Z12-HS-R1-S3-B8S |
 |
|
PBM-12Z11-HS-N-NN-B8S |
 |
|
PBM-12M11-CB-N-NN-A6S |
 |
|
PBM-12M12-FS-U1-R3-B8S |
 |
|

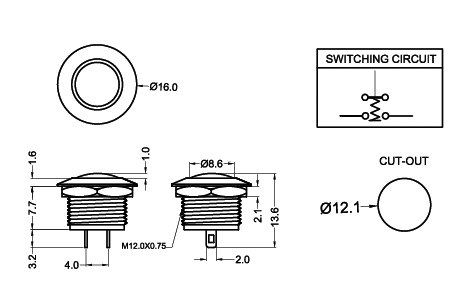

PBM-12Q11-RS-N-NN-S7S |
 |
