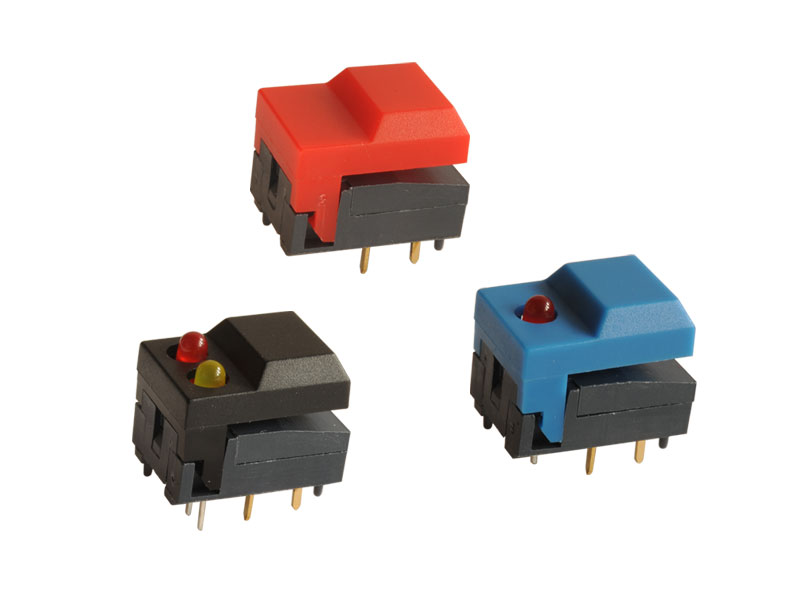

PB86 with LED lamps
PB86 with LED lamps
モデル：PB86
PB86
with LED lamps
DIP MOMENTARY PUSH BUTTON SWITCHES UP 24VDC, 12mA
Illuminated or Non-illuminated, Single or Twin LED, SPDT
加入詢問
with LED lamps
DIP MOMENTARY PUSH BUTTON SWITCHES UP 24VDC, 12mA
Illuminated or Non-illuminated, Single or Twin LED, SPDT
Feature
- Rating: 24VDC, 12mA
- Initial contact resistance: 50m Ohm max.
- Insulation resistance: 100M min
- Dielectric strength: 250VAC for 1 minute
- SPST, push on
- Small or large cap
- one or twin len windows
- Optional LED and cap color
- PCB mounting

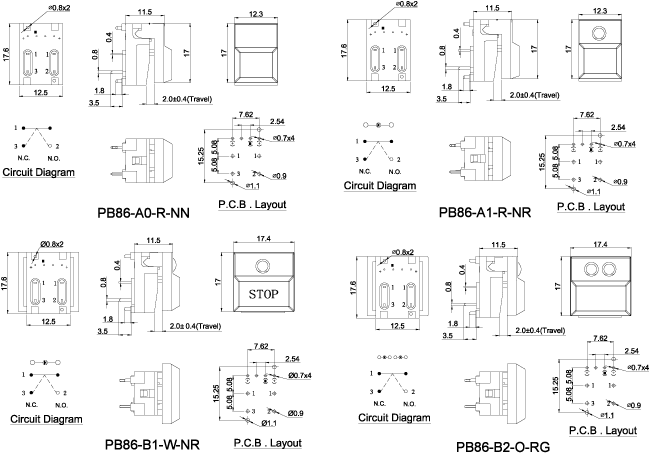

Specification

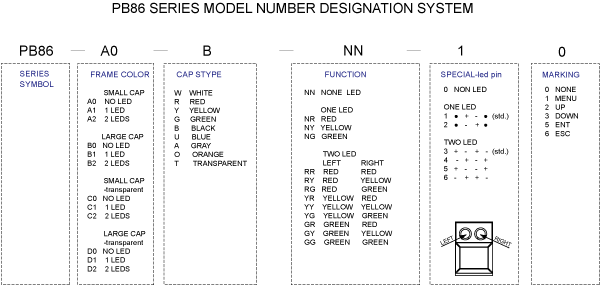

How to order
.gif)
Item
