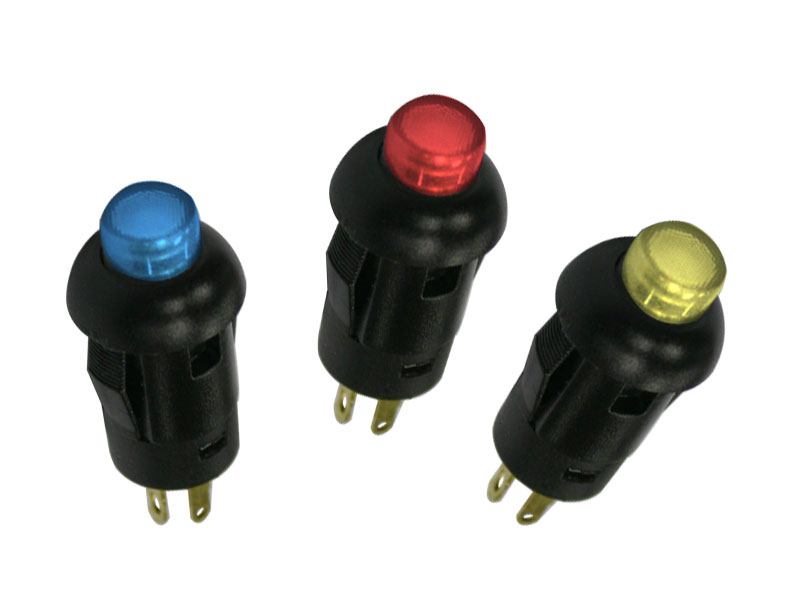

PB11-1 with LED lamps
PB11-1 with LED lamps
Feature
- DC30V 0.1A
- Contact resistance : 50m ohm . initial
- Insulation resistance : 100M ohm min. 500VDC
- Withstand voltage : AC500V 1 minute.
- Soldering temper : 260 °C 5 Sec
- Operating life : 10,000 cycles
- Operation : 250±100 gf.
- SPST, PUSH ON
- Optonal LED colors, green, blue, yellow, red, white....etc.
- Snap in type, Dia. 8.0~8.4 mounting hole for different panel thickness
- Soldering terminals
