モデル：PB-12 Series

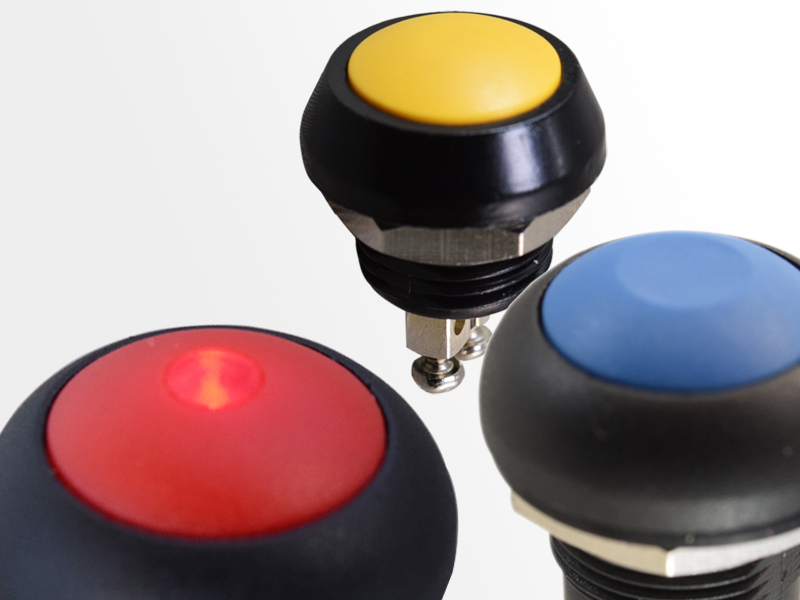

IP65 All Plastic Round Mini Push Button Switches, Install by nut-tightening or snapin
Water Protection Level up to IP65
0.2A 250VAC / 0.5A 12VDC, Illuminated or Non-Illuminated
Momentary or Lock Position
All Plastic Round Mini Push Button Switches, Install by nut-tightening or snap-in
Distinctive Knob Color for Easy Identification
加入詢問
Water Protection Level up to IP65
0.2A 250VAC / 0.5A 12VDC, Illuminated or Non-Illuminated
Momentary or Lock Position
All Plastic Round Mini Push Button Switches, Install by nut-tightening or snap-in
Distinctive Knob Color for Easy Identification
Feature
- 0.2A 250VAC / 0.5A 12VDC
- Contact resistance: 50m Ω(max.) initial
- Insulation resistance: 100M Ω (min)
- Dielectric strength : 1,000VAC for 1 minute
- Mechanical life: 500,000 cycles
- Electrical life: 100,000 cycles
- SPST OFF-(ON), OFF-ON
- IP65 protection level
- Non-illuminated, spot & power marking illuminated
- M12 bushing, screw mounting
- Switch actuator / body material: Plastic
- Solder, screw terminals
Specification

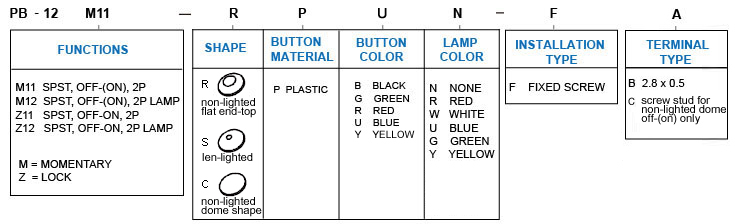

How to order
Item
|

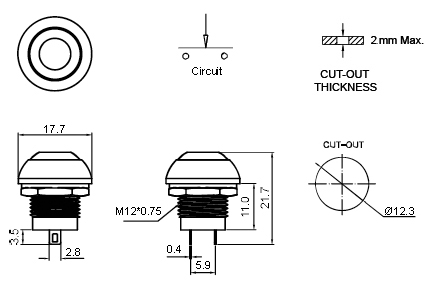

PB-12M11-RPUN-FB |
 |
|

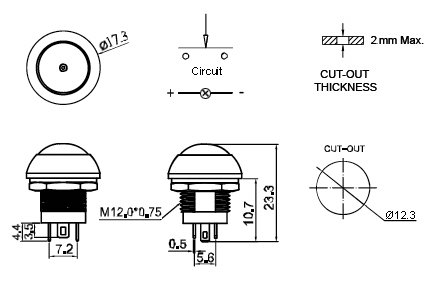

PB-12M12-SPGG-FB |
 |
|

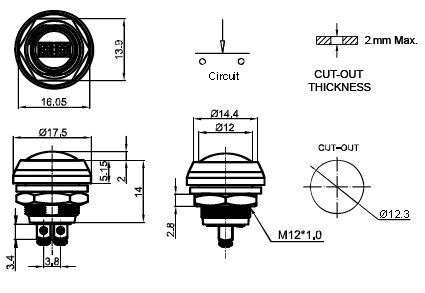

PB-12M11-CPYN-FC |
 |
