モデル：NE87
NE87
IP67 Level

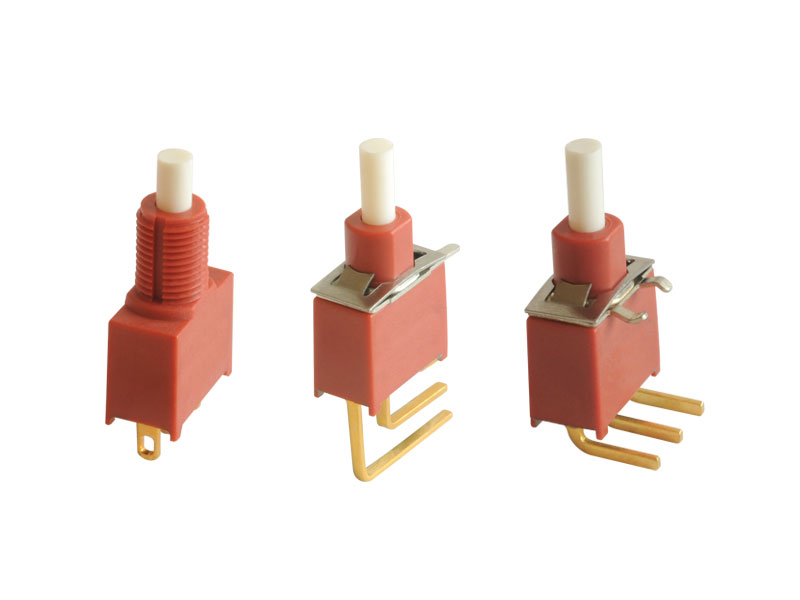

Sealed minature Momentary Pushbutton Switches
UP to 1A 120VAC or 28VDC
加入詢問
IP67 Level
Sealed minature Momentary Pushbutton Switches
UP to 1A 120VAC or 28VDC
Feature
- 1A 120VAC or 28VDC (silver plated); 0.4VA Max. 20VAC or DC Max (gold plated)
- Initial contact resistance: 20m Ohms max.
- Insulation resistance: 1,000M Ohms min.
- Dielectric strenght: 1,000VAC for 1 minute
- Electrical life: 50,000 cycles
- Sealed miniature push switches,, internal o-ring and epoxy terminals
- Straight and right angle PC terminals, PCB mounting
- Cap as optional accessory
- Hardware accessories supplied for threaded bushing type

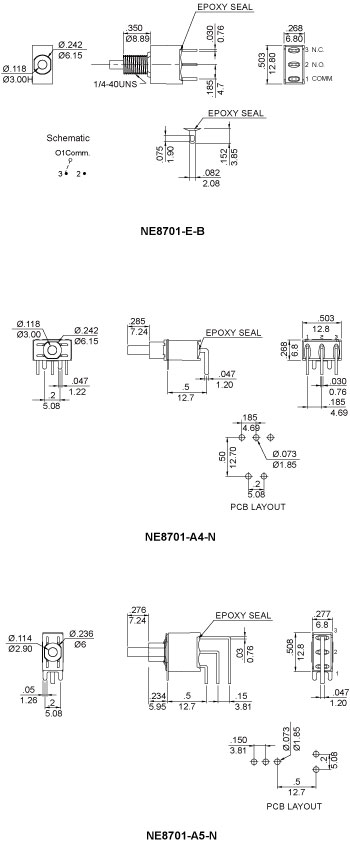

Specification

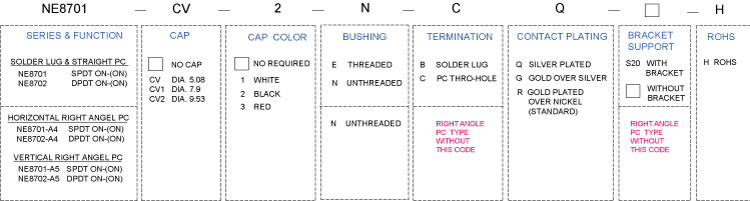

How to order
.jpg)
Item
 |
