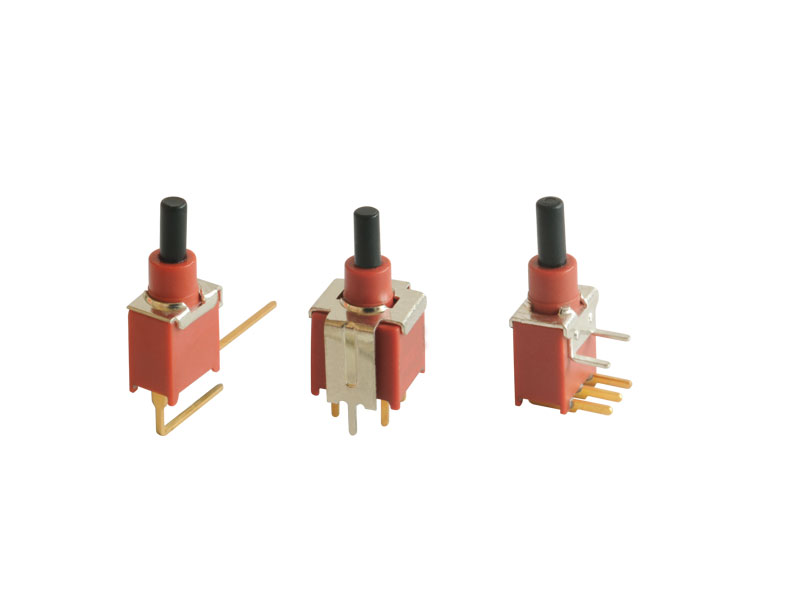

ES-21, IP67 level

•  RATING:  1A 120VAC or 28VDC (silver plated) ;0.4VA at 20VAC or DC (gold plated)
•  Initial contact resistance: 20m Ohms max.
•  Insulation resistance: 1,000M Ohms min.
•  Dielectric strenght: 1,500VAC for 1 minute
•  Electrical life: 30,000 cycles
• Operating Temperature -30~80 degree C
• Sealed sub-miniature push switch, internal o-ring and epoxy terminals
• SPST, SPDT
• Thro-hole and right angle PC terminals
• Unthreaded bushing type, PCB mounting
• IP67 water proof level

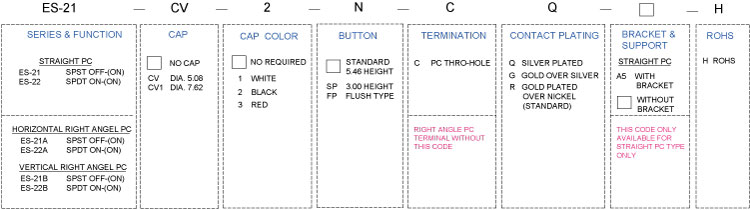

How to order
