X6 37X21.8mm
X6 37X21.8mm

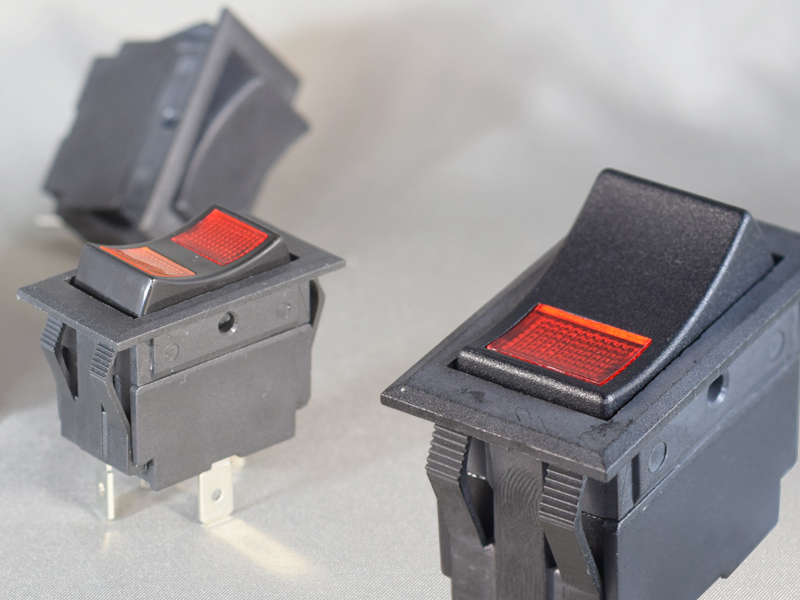

モデル：X6 Series
Switches for Recreational Vehicles, Industrial Equipment, Heavy Duty Applications
Switches for Recreational Vehicles, Industrial Equipment, Heavy Duty Applications
Illumination or Non illumination available
Single LEN or Double LEN
Quick Connect Terminals, SPDT, DTDT & Momentary Functions
加入詢問
Switches for Recreational Vehicles, Industrial Equipment, Heavy Duty Applications
Illumination or Non illumination available
Single LEN or Double LEN
Quick Connect Terminals, SPDT, DTDT & Momentary Functions
Feature
- Rating: 15A 125VAC
- Initial contact resistance : 20m ohm max.
- Insulation resistance : 100M ohm min, at 500VDC
- Dielectric strength : 1,000 VAC 50/60Hz for 1 minute
- Electrical Life: 30000 cycles
- Mechanical life: 100,000 cycles
- Illuminated and non-illuminated
- Applications: recreational vehicles,industrial equipments
Specification

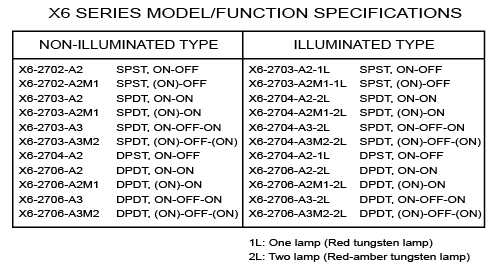

How to order

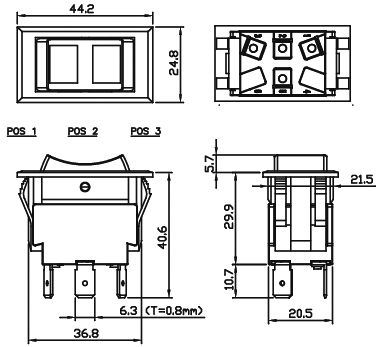

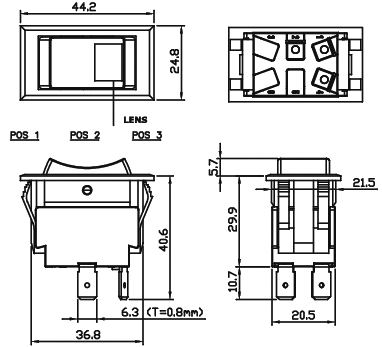

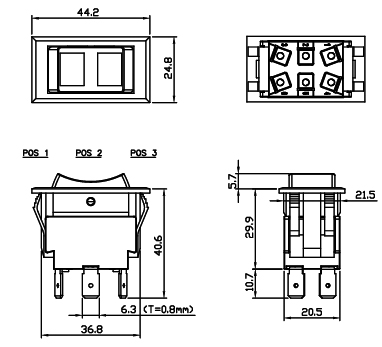

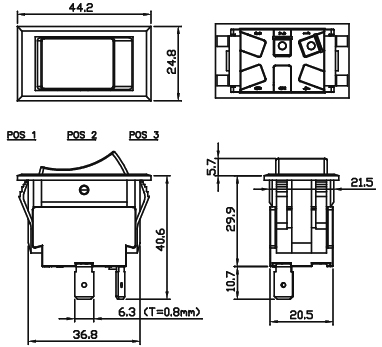

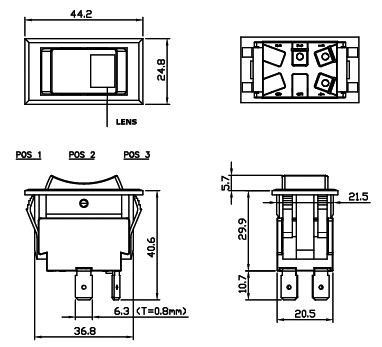

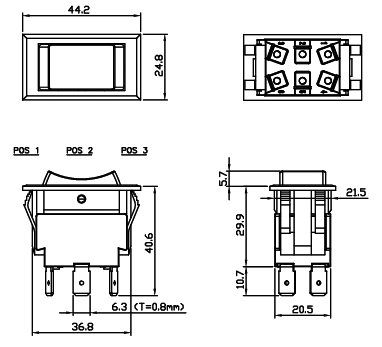

Panel cutout
Item
|
X6-2702-A2 |
 |
|
X6-2703-A2M1-1L |
 |
|
X6-2704-A3M2-2L |
 |
|
X6-2706-A3 |
 |
|
X6-2706-A3-2L |
 |
|
X6-2703-A2-1L |
 |
