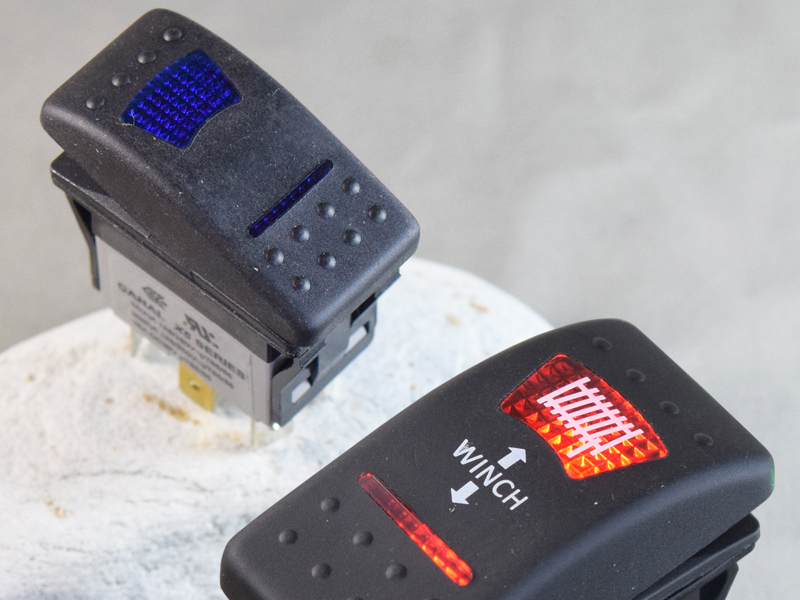

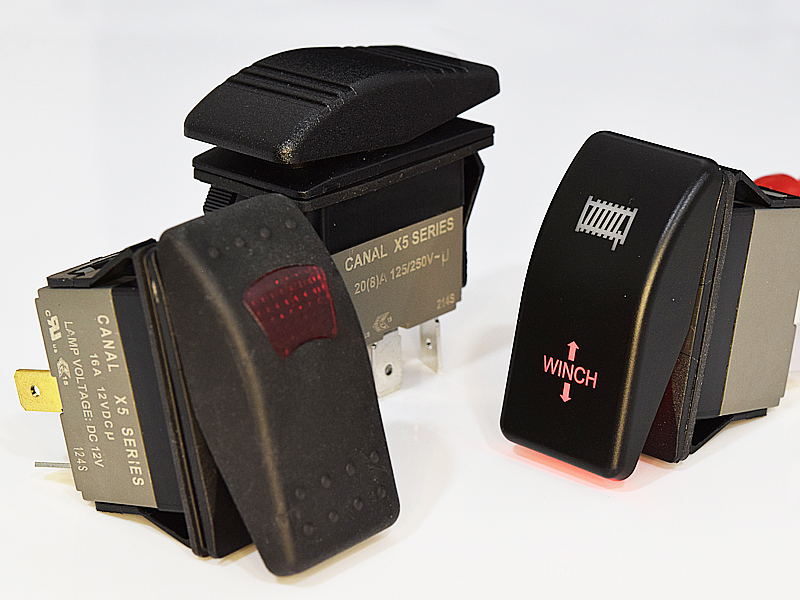

X5 IP67, 37X21.2mm

モデル：X5 Series

Heavy duty sealed rocker switches, up to 20(8)A 125/250VAC, 16A 30VDC μ40T85/5, UL61058-1 approved

HEAVY DUTY SEALED ROCKER SWITCHES, Multi Ciruit, Various Actuator type, UP TO 20(8)A 125/250VAC~μ40T85/55; 16A 30VDC μ40T85/55 Max.

加入詢問

Feature

Safety approved internationally by cURus in North America, ENEC15 in Europe.

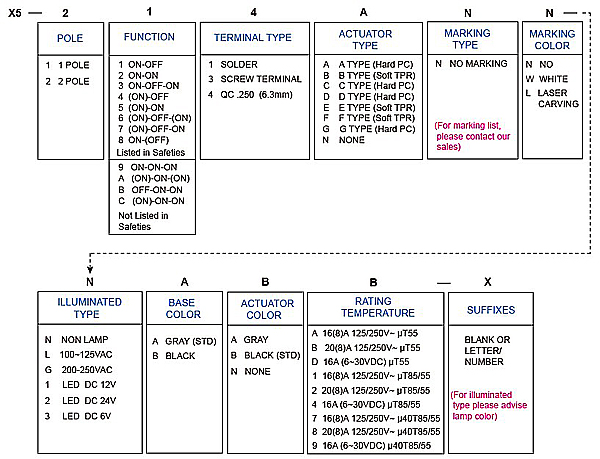

1, 2 pole circuitry; 2 and 3 positions, maintained and momentary action

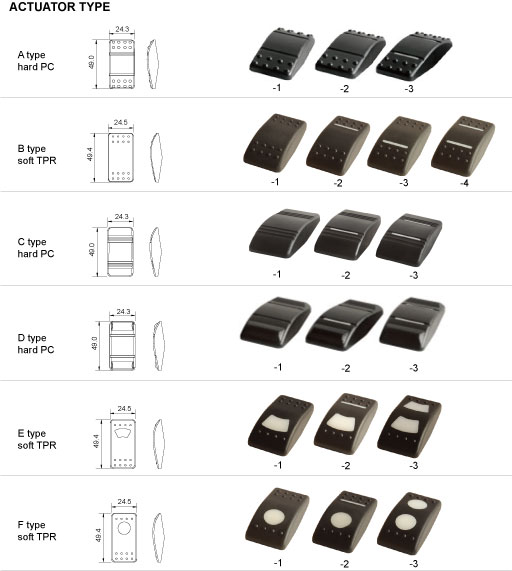

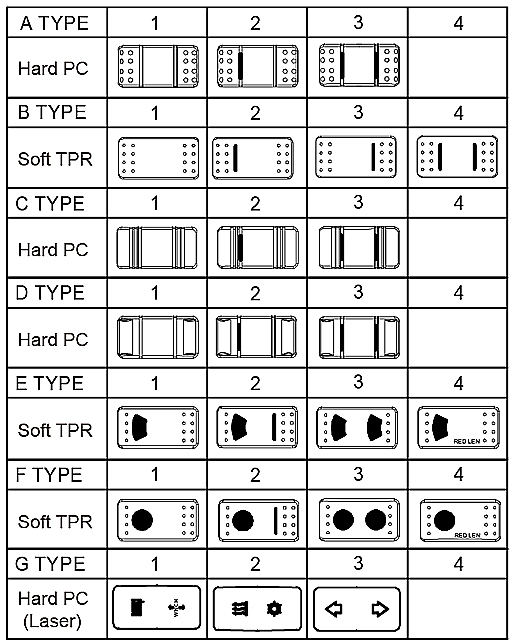

Optional actuator type and marking.
Environment-proof sealing, confirming to IP67 level
Quick-connect, solder and screwed terminals

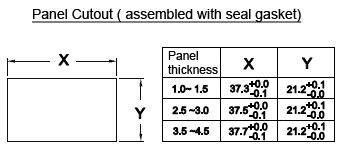

Panel accessories as optional parts
Application includes automotive, marine, agriculture machine and more.
A wide range of temperature rating, confirming to μ40T85/55

16(8)A 125/250V, ~µT55, ~µ40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
20(8)A 125/250V, ~µT55,~µ40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
16A DC, 6V, 12V, 14V, 18V, 24V, 30V, µT55, µ40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
Electrical life:10,000 cycles(cURus), 10,000 cycles (ENEC15)
Dielectric strength: 1,500 VAC for 1 minute
Initial contact resistance: 20m Ohms max.
Insulation resistance: 100M Ohms min, at 500VDC
