RH American Style, 13.6X28.6mm

RH American Style, 13.6X28.6mm

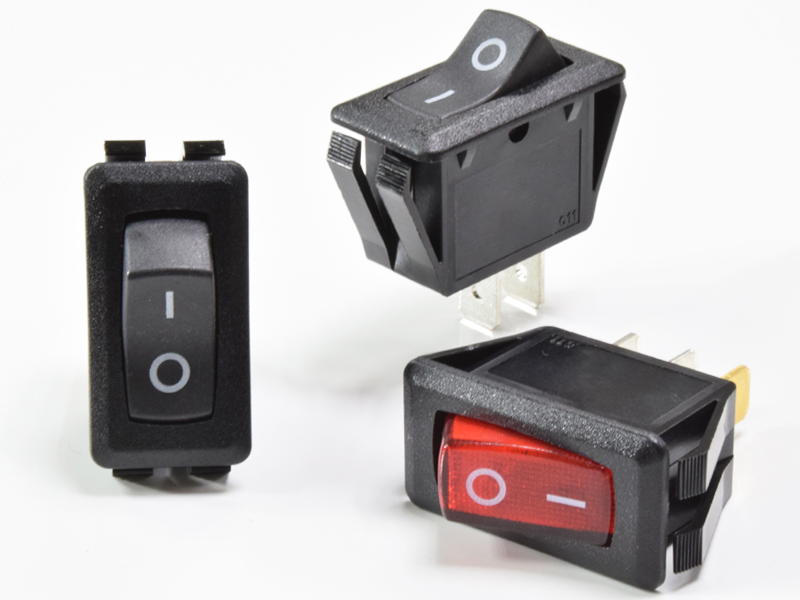

モデル：RH Series
Slim Rocker Switches, Standard North America Cutout, SPST, SPDT, 30A 125/250VAC, 128A inrush



Slim medium-sized rocker switches of american style.

Fitting cutout 13.6x28.6mm.

30A 125/250VAC or 125A inrush current as an optional selection.

Meeting UL new standard 61058-1

Illuminated or non-illuminated
加入詢問
Feature



  • 16A 125/250VAC(cURus)
  • 16(4)A 250V~ T125/55 (ENEC10, CQC)
  • Optional: 3/4HP 120/250VAC (cURus)
  • Optional: 8[128]A 250V T55 1E4 (cURus, ENEC15)
  • Optional: 30(8)A 125/250VAC T125/55 1E4 (cURus, ENEC15)
  • Optional: 30A 48VDC T125/55 1E4 (cURus, ENEC15)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC(UL), 1500VAC(ENEC)for 1 minute
  • Electrical life: 6000(UL); 10000(ENEC) cycles
  • Base : Nylon 66, UL rated : 94V-2 min
  • Actuator : Nylon 66 /PC, UL rated 94V-2 min
  • Spring : Piano wire
  • Contacts : Silver alloy
  • Terminals : Silver plated copper
  • Lamp : Neon for AC
  • SPST, SPDT
  • ON-OFF; ON-ON functions
  • Solder or quick connect terminals

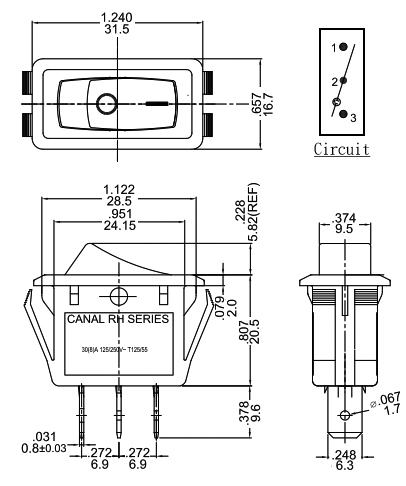

Specification

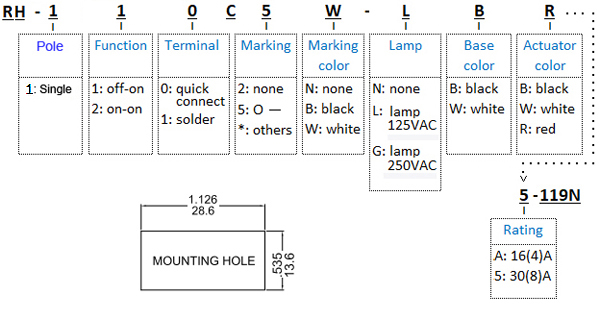

How to order

Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our R-H series can offer an option up to 8A'L' , or 128A inrush that can be the appropriate switch to ensure your device's life and stability.

Item

RH-110C5W-LBR5-119N

RH-110C5W-NBB5-119N
