RH 11X30mm

モデル：RH Series

Standard 11x30mm rocker switches, up to 30A 125/250VAC, 128 inrush

SINGLE POLE ROCKER SWITCHES UP TO 30A 125/250VAC

SPST, SPDT, on-off, on-on, on-off-on or momentary functions

illuminated or non-lighted, round len window available

.250 or .187 quick connector terminals

加入詢問

Feature

Two positions:

20A 125VAC (cURus)
16A 125/250VAC(cURus)
16(4)A 250V~ T125/55 (VDE & ENEC10, CQC)
Optional: 3/4HP 120/250VAC (cURus)
Optional: 10(2)A 250~T125/55 5E4 (VDE & ENEC10, CQC)
Optional: 20(8)A 250V~ T125/55 (VDE & ENEC10, CQC)
Optional: 25(8)A 250VAC T125/55 (CQC)
Optional: 8[128]A 250V T55 1E4 (cURus, ENEC15)
Optional: 30(8)A 125/250VAC T125/55 1E4 (cURus, ENEC15)
Optional: 30A 48VDC T125/55 1E4 (cURus, ENEC15)
Optional: 20A 125VAC /16A 250VAC, 3/4HP 125/250VAC T105 (UL/CUL)

Three positions:

16A 125/250VAC(cURus)
16(4)A 250V~ T85/55 (VDE & ENEC10, CQC)

Initial contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000 VAC(UL), 1500VAC(VDE)for 1 minute
Electrical life: 6000(UL); 10000(VDE) cycles
Base : Nylon 66, UL rated : 94V-2 min
Actuator : Nylon 66 /PC, UL rated 94V-2 min
Spring : Piano wire
Contacts : Silver alloy
Terminals : Silver plated copper
Lamp : Neon for AC
Round LED effect lighting available
SPST, SPDT
ON-OFF; ON-ON, ON-OFF-ON or momentary functions

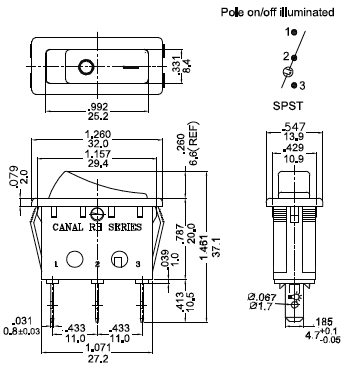

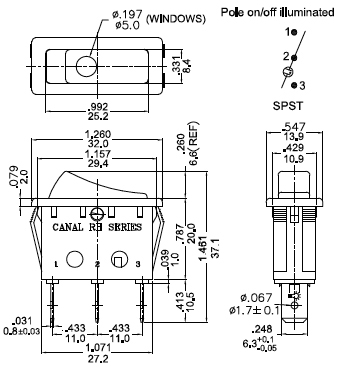

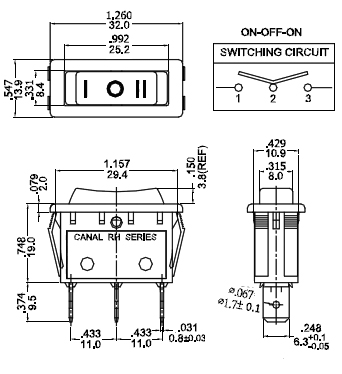

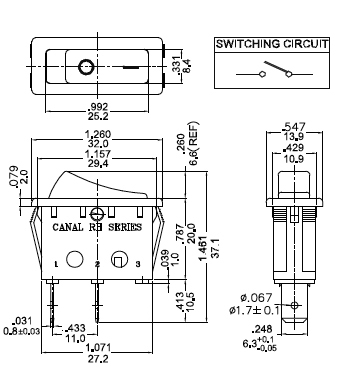

Specification

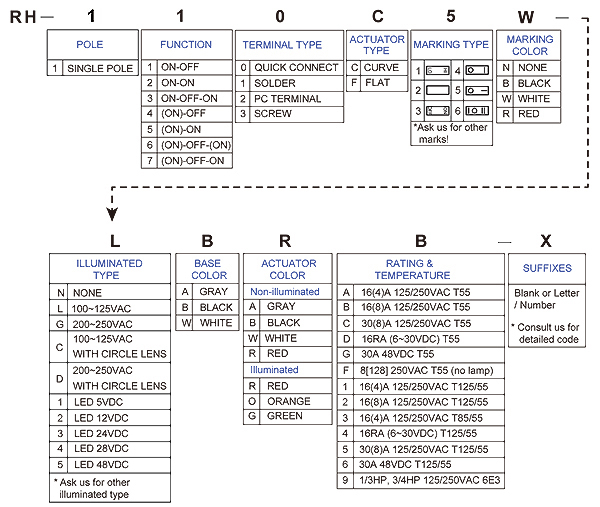

How to order

Panel cutout

Quoted from Wekipedia:

~Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our RH series can offer an option up to 8A'L' or 128A inrush that can be the appropriate switch to ensure your device's life and stability.
