MRH 6.8x19mm

モデル：MR-H Series

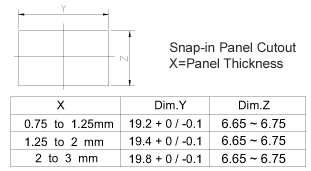

Small mini-rocker switches up to UP TO 16(4)A 125/250VAC, mounting hole 6.8x19mm

Small mini-rocker switches up to UP TO 16(4)A 125/250VAC

Non-illuminated, quick connect, PCB or soldering terminals

Splash protection cover available

加入詢問

Feature

Non-illuminated type: (cURus , ENEC15)
16(4)A 125/250V ~T125/55, 1E4
12(4)A 125/250V ~T125/55, 1E4
10(4)A 125/250V ~T125/55, 1E4
16RA 30VDC MAX ~T155/55, 1E4
UL1054 approved: (cURus)
10A 125VAC, 8A 250VAC 1/4HP
VDE, ENEC10, CQC (GB15092.1/ GB8898)
10(4)A 250V~T125/55 1E4
Initial contact resistance : 20m ohm Max.
Insulation resistance : 100M ohm Min. at 500VDC

Safety approved internationally by cURus in North America, VDE& ENEC10 or ENEC15 in Europe, CQC in Asia
SPST circuitry
Terminals options: quick-connect, solder and PCB pins
Optional IEC60335-1 glow wire test 750 degree C <=2 Sec
Waterproof cover boot as optional accessory

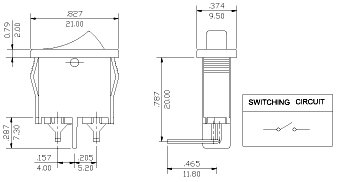

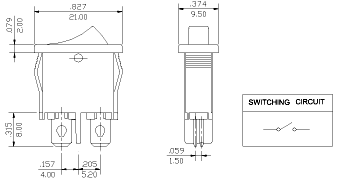

Specification

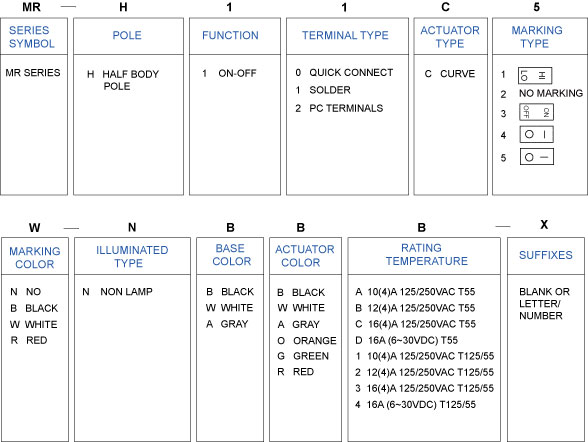

How to order
