MR3-H 6.8x19mm

MR3-H 6.8x19mm

モデル：MR3 Series
MR3-H

6.8x19mm square type or oval body, SPDT, 3 terminals, 10(4)A 250VAC approved by safeties

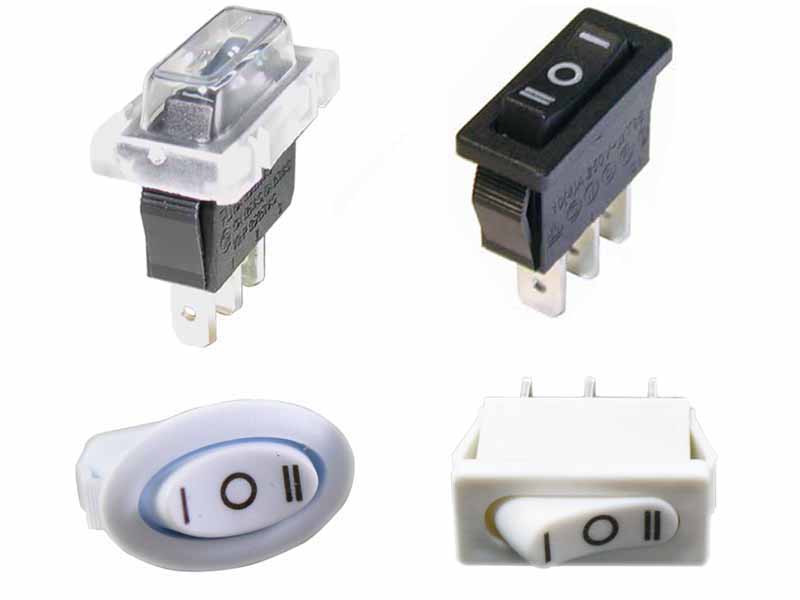

Ultra Small Mini Rocker Switches, Square or Oval Body

UP TO 10(4)A 250VAC, SPDT, on-off-on, on-on, quick connect terminals
加入詢問
Feature



  • 10A 125 / 250VAC (UL/CUL)
  • 10(4) 250V~T85 (FIMKO, ENEC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 6000(UL) 10,000 cycles(ENEC)
  • Temperature range : -20 to + 85 degrees in Celsius
  • Base : Nylon 66, 94V-2 min.
  • Actuator : Nylon 66, 94V-2 min.
  • Spring : Piano wire
  • Contact arm : Silver plated copper alloy
  • Terminals : Silver plated copper

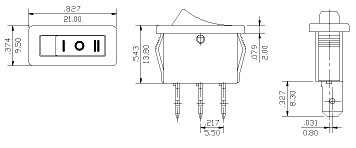

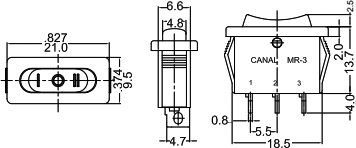

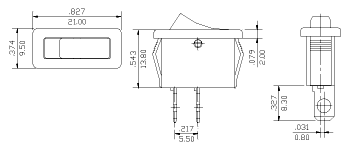

Specification

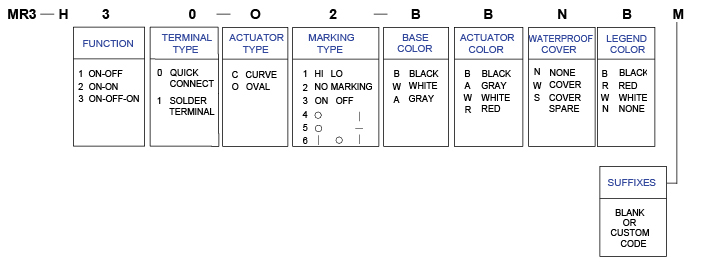

How to order

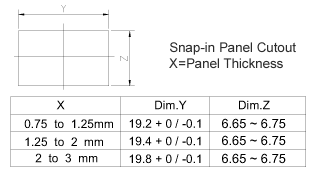

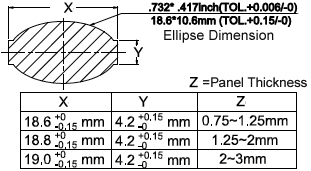

Panel cutout

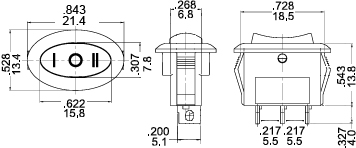

MR3-H31-O6-WWNBM

MR3-H11-C2-BBNN

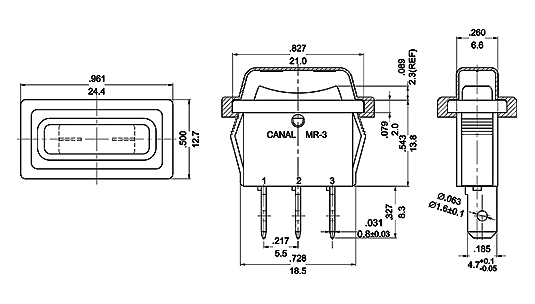

MR3-H30-C6-BBNW

MR3-H31-C6-WWNBO

MR3-H30-C6-BBWW
