モデル：MR3 Series
13x19mm mini rocker switches with momentary construction, up to 10(4)A 250VAC



UL, CUL & ENEC recognized mini rocker switches

Up to 10(4)A 125/250VAC

Available in SPST, SPDT, DPST or DPDT circuits

Momentary action in three actuator positions available

Quick-connect, solder or pc terminals
加入詢問
Feature



  • 10A 125 / 250VAC (UL/CUL)
  • 10(4) 250V~T85 (FIMKO, ENEC)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 6000(UL) 10,000 cycles(ENEC)
  • 1, 2 pole circuitry; 2 and 3 positions, maintained and momentary action
  • Temperature range : -20 to + 85 degrees in Celsius
  • Base : Nylon 66, 94V-2 min.
  • Actuator : Nylon 66, 94V-2 min.
  • Spring : Piano wire
  • Contact arm : Silver plated copper alloy
  • Terminals : Silver plated copper



Specification

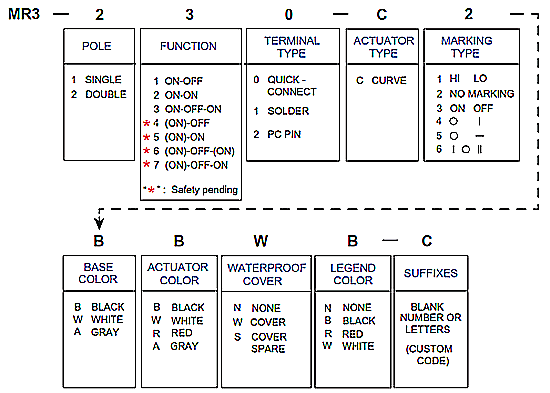

How to order

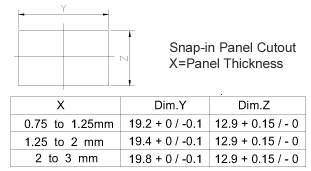

Panel cutout

Item

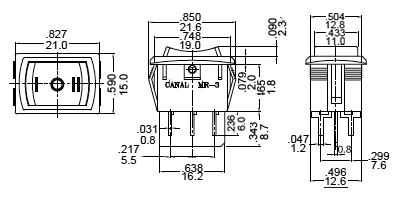

MR3-232-C6-BBNW

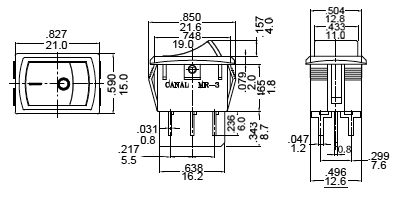

MR3-222-C5-BBNW

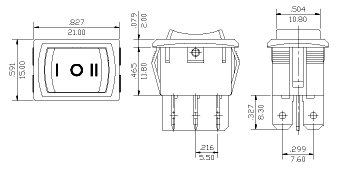

MR3-230-C6-BRNW

Splash-protection boot available
