モデル：MR Series
Standard mini-rocker switches, 13x19mm, DPST, SPST Up to 16(4)A 125/250VAC



Double pole or single pole mini-rocker switches up to 16(4)A 125/250VAC

SPST, DPST, illuminated or non-illuminated

Can be offered with optional soft outlook

Fit internatioal panel cutout ( 13x19mm )

Splash-protection cover available
ファイルのダウンロード 加入詢問
Feature



  • Non-illuminated type: (cURus , ENEC15)
    16(4)A 125/250V ~T125/55, 1E4
    12(4)A 125/250V ~T125/55, 1E4
    10(4)A 125/250V ~T125/55, 1E4
    16RA 30VDC MAX ~T155/55, 1E4
  • Illuminated type: (cURus , ENEC15)
    16(4)A 125/250V~T55, 1E4
    12(4)A 125/250V~T55, 1E4
    10(4)A 125/250V~T55, 1E4
    12RA 30VDC MAX T55, 1E4
  • UL1054 approved: (cURus)
    10A 125VAC, 8A 250VAC 1/4HP
  • CQC (GB15092.1/ GB8898)
    10(4)A 250V~T125/55 1E4
  • KC (Korea)
    10(4)A 250V , 1E4 (for specific model)
  • Initial contact resistance : 20m ohm Max.
  • Insulation resistance : 100M ohm Min. at 500VDC
  • Safety approved internationally by cURus in North America, ENEC15 in Europe, CQC& KC in Asia
  • DPST, SPST circuitry
  • Terminals options: quick-connect, solder and PCB pins
  • Optional IEC60335-1 glow wire test 750 degree C <=2 Sec
  • Built in with optional neon lamp, DC LED lamp upon request
  • Waterproof cover boot as optional accessory
Specification

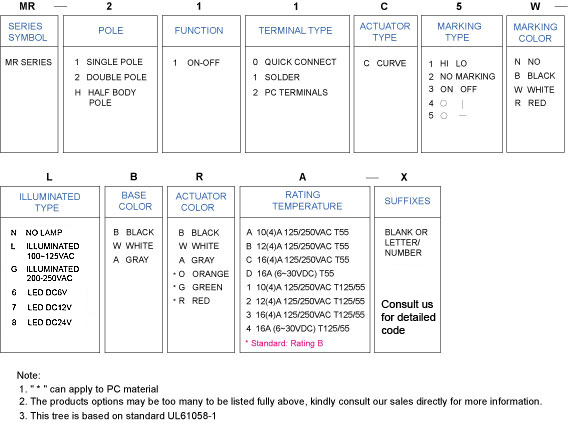

How to order

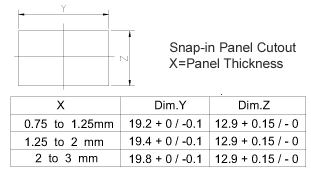

Panel cutout



Item

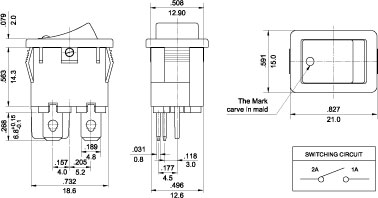

MR-111C5N-LBRB-1LN

Soft Outlook, SPST

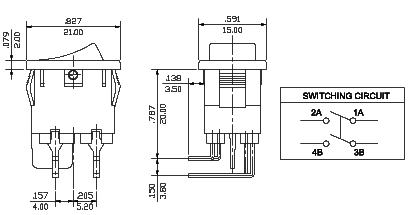

MR-212C5W-NBBB-B2N

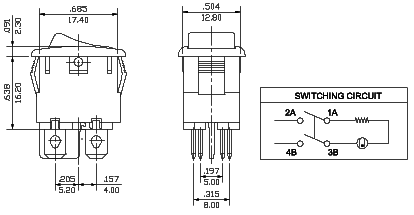

MR-211C5N-LBOB-1LN

Soft Outlook, DPST

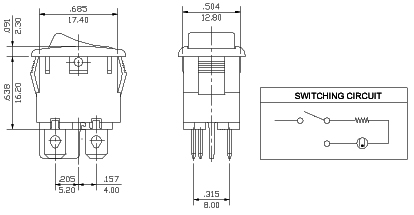

MR-111C6W-NBBB-12N

MR-211C2N-NBBB-13N

with "Cross" insulation barrier
