B, 13.6x28.6mm

B, 13.6x28.6mm

モデル：B Series
B-series

Standard American Style Rocker Switches with Self-Wiping Contact, 15A 125VAC in UL, Single Pole



SINGLE POLE ROCKER SWITCHES UP TO 15A 125VAC in UL

Self-Wiping Contact to maintain a clean conductance

Illuminated or Non-lighted

Solder Terminals, Quick Connect or Wire Lead terminals

13.6x28.6mm in Panel Cutout
加入詢問
Feature

  • 10A 250VAC (UL)
  • 15A 125VAC (UL)
  • Initial contact resistance : 20m ohm max.
  • Insulation resistance : 100M ohm min, at 500VDC
  • Dielectric strength : 1,000 VAC for 1 minute
  • Electrical life : 6,000 cycles
  • Temperature range : -20 to + 85 degrees in Celsius
  • Safety approved international by UL in North America
  • Two kinds of terminal connection for lam circuit
  • Standard 13.6 x 28.6mm snap-in cutout size
  • Built in with optional neon lamp, DC fluorescent lamp upon request
  • Quick-connect and wire terminals
Specification

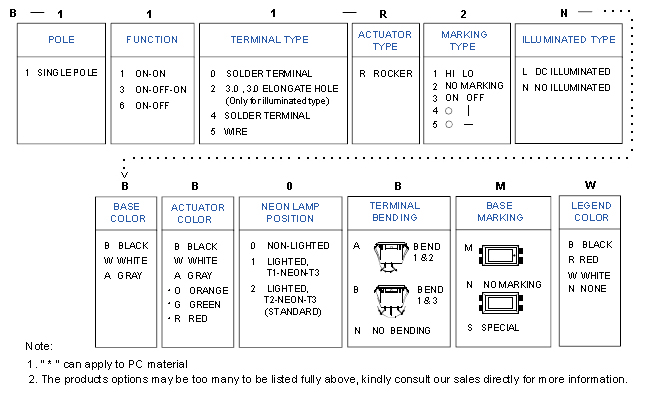

How to order

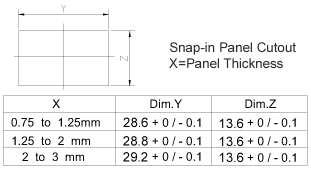

Panel cutout

Item

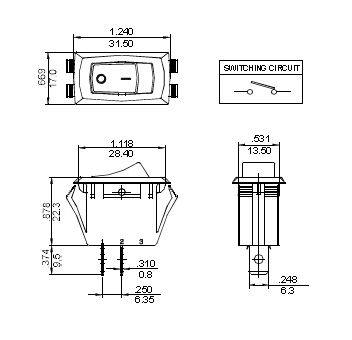

B-160-R5N-BR0NNW

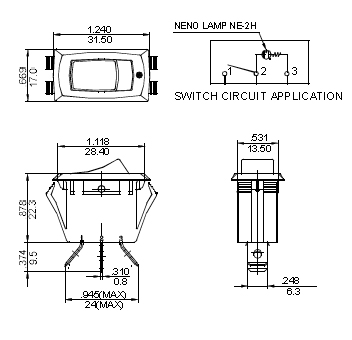

B-162-R2L-BR2BMW

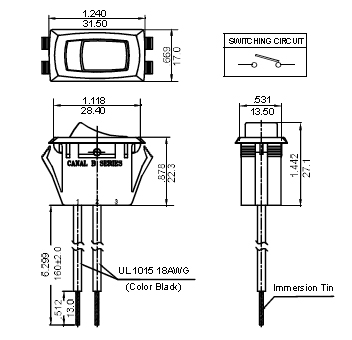

B-165-R2N-WW0NNN
