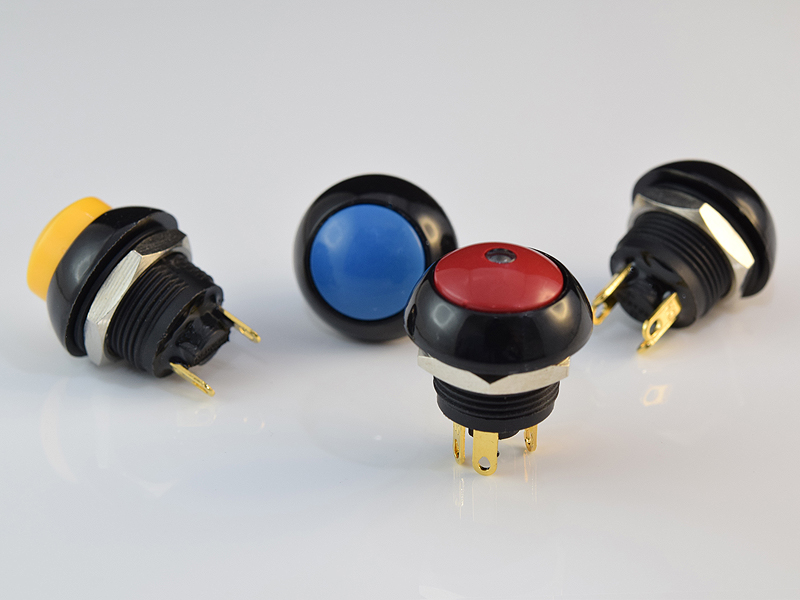

Sealed Illuminated Round Mini Push Button Switches

Sealed Illuminated Round Mini Push Button Switches

モデル：PB-13 Series
Waterproof Level up to IP67, IP68 & IP69K

5A 28VDC / 1A 115VAC, illuminated or non-illuminated

Momentary function

Plastic round mini push button switches, install by screw mounting

Distinctive Knob Color for Easy Identification
加入詢問
Feature
  • 5A 28VDC /  1A 115VAC
  • Contact resistance: 50m Ω(max.) initial
  • Insulation resistance: 100M Ω (min)
  • Dielectric strength : 1,000VAC for 1 minute
  • Mechanical life: 1,000,000 cycles
  • Electrical life: 25,000 cycles
  • SPST OFF-(ON)
  • IP67, IP68 & IP69K protection level (Front panel)
  • Non-illuminated, spot marking illuminated
  • M12 bushing, screw mounting
  • Switch actuator / body material: ABS / PA66
  • Solder terminals
  • Operating force: 1.7lbs (770g)
  • Release force: 12oz (340g)



Specification

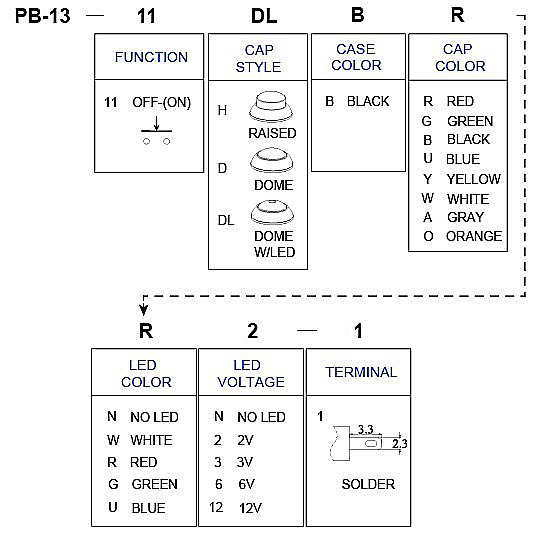

How to order

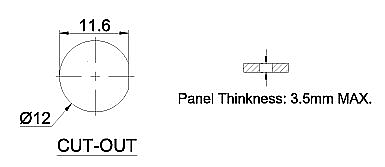

Panel cut-out



Item

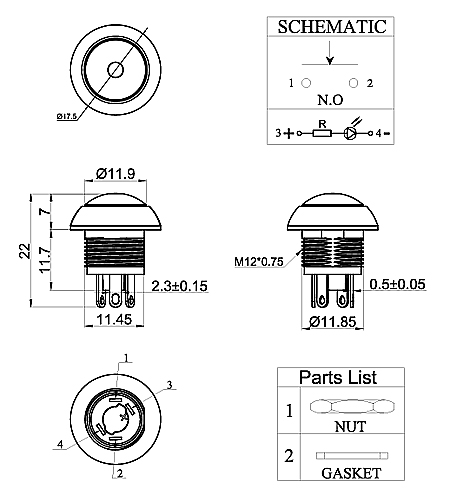

PB-13-11DLBRR2-1

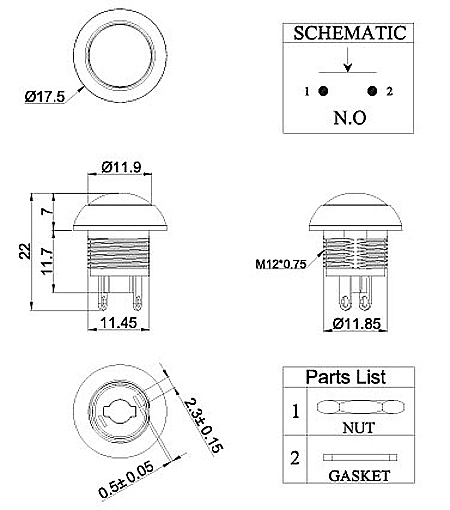

PB-13-11DBUNN-1

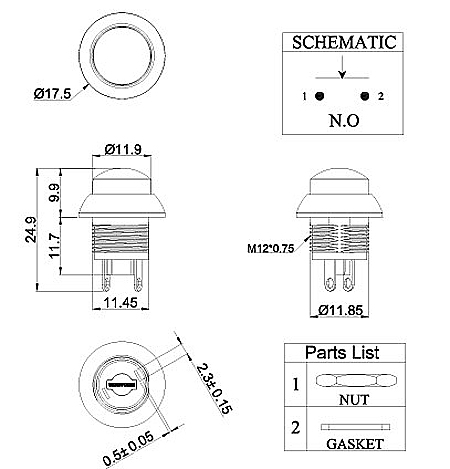

PB-13-11HBYNN-1
