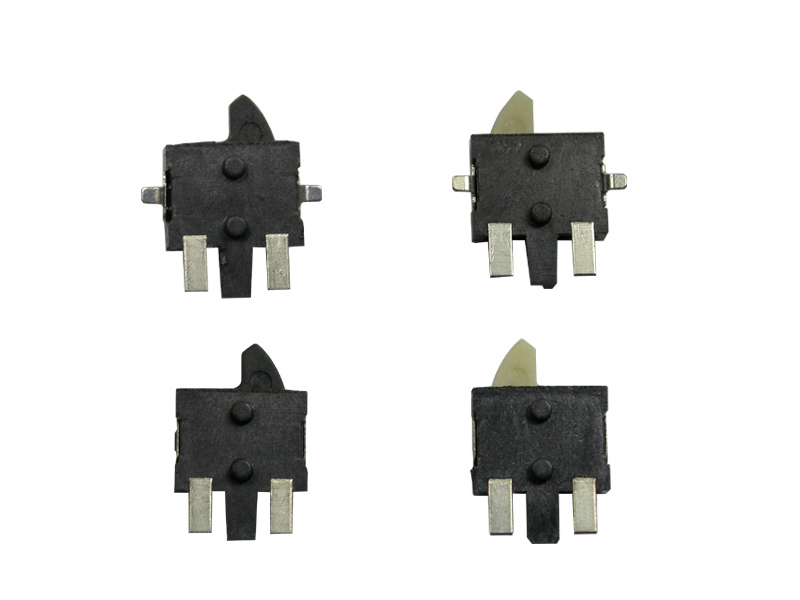

TPS, Pitch 2.5, MINIATURE DETECTOR SWITCHES
TPS, Pitch 2.5, MINIATURE DETECTOR SWITCHES
Feature
- Rating: 5VDC, 10mA
- Operating Temperature: -20 to +70 degrees in celsius.
- Operating Force: 0.3N MAX.
- Contact Resistance : 1 Ohm max.
- Mechanical Life: 100,000 cycles min
- TPS-M 2,000 pcs per reel package.
- TPS-N 3,000 pcs per reel package.
Item
|

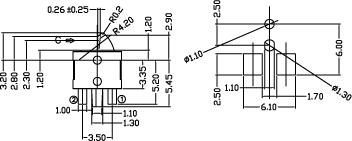

TPS-12NTL |
 |
|

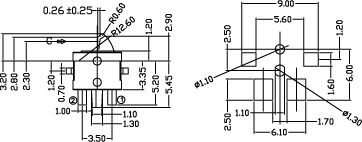

TPS-12MTL |
 |
|

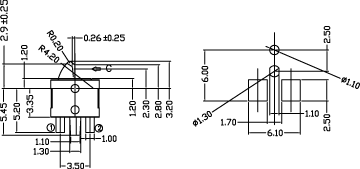

TPS-12NTR |
 |
|

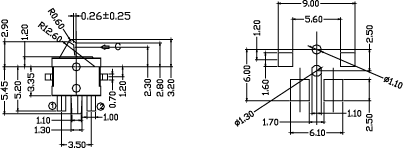

TPS-12MTR |
.gif) |
.gif)
