SW3, 13.3X6.5, IP67

SW3, 13.3X6.5, IP67

モデル：SW3 Series
SW3-series

IP67 Protection Ultra Small Size Micro Switches, 13.3x6.5x5.3mm, up to 3A in UL&CUL Approval



Ultra small micro switches up to 3A 125/250VAC in safety approval.

Water resistant with protection level IP67.

Direct knob actuation or can be built with metal lever
加入詢問
Feature

  • 3A 125/250VAC μ25T85,1E4 (cURus)
  • 2A 12VDC μ25T85, 1E4 (cURus)
  • 1A 24VDC μ25T85, 1E4 (cURus)
  • Initail contact resistance: 100m ohm (max.)
  • Insulation resistance : 100M ohm (min,) at 500VDC
  • Dielectric strength : 600VAC for 1 minute
  • Safety approved internationally by cURus North America
  • IP67 protection level (cURus)
  • Mechanical life: up to 1,000,000 cycles
  • Electrical life: 10,000 cycles
  • Function: SPDT circuit
  • Operating temperature range: -25°C ~ 85°C
  • Applications in automotive electronics, appliance and Industrial control



Specification

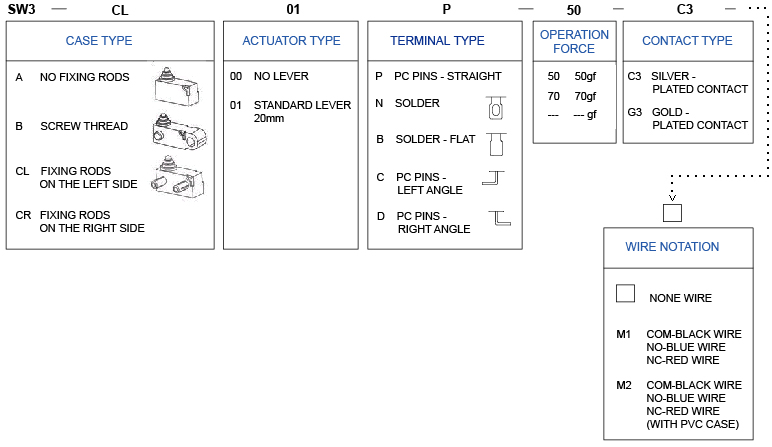

How to order

Item

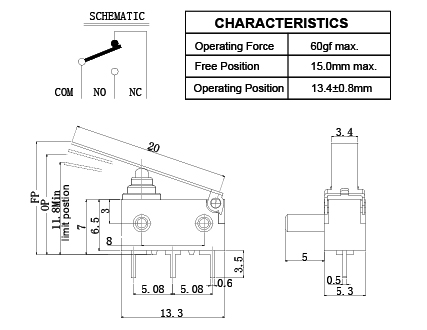

SW3-CL01P-50-C3

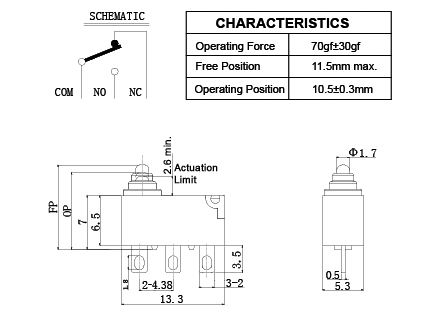

SW3-A00N-70-C3
