SSM, 30VDC, 500mA
SSM, 30VDC, 500mA
モデル：SSM Series
SSM
30VDC, 500mA

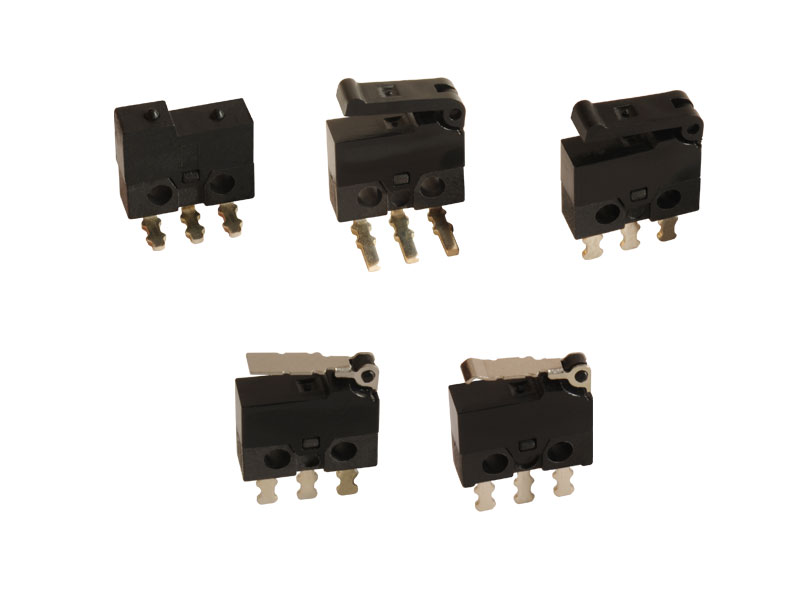

MINIATURE MICRO SWITCHES, DETECTOR SWITCHES UP TO 30VDC
SPDT, ALL PBT BODY AND PCB TERMINALS
Up to 250K life cycles upon request
加入詢問
30VDC, 500mA
MINIATURE MICRO SWITCHES, DETECTOR SWITCHES UP TO 30VDC
SPDT, ALL PBT BODY AND PCB TERMINALS
Up to 250K life cycles upon request
Feature
- Rating: 30VDC, 500mA
- Initial contact resistance : 100m Ohm max.
- Insulation resistance : 100M min, at 250VDC
- Dielectric strength : 500 VAC for 1 minute
- Temperature range : -15 to +70 degrees in celsius
- Operating force: 50~120gf maximum
- Switch life: 100,000 cycles minimum
- Housing: PBT
- Cover: PBT
- Lever: PBT
- Actuator: POM
- Contacts: Silver alloy
- Terminals: Brass, silver plated
Specification

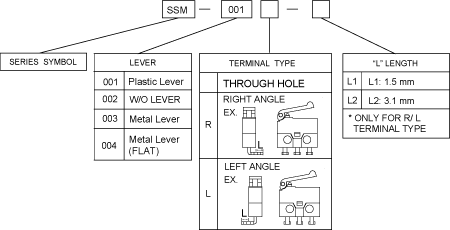

How to order
Item
|

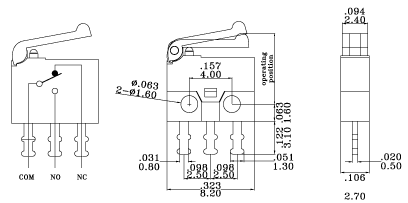

SSM-001 |
 |
|

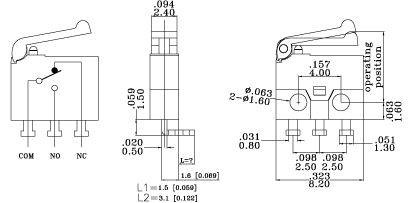

SSM-001R-L1/L2 |
 |
|

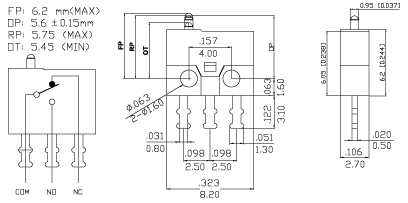

SSM-002 |
 |
|
SSM-003 |
 |
|
SSM-004 |
 |
