S-19 SERIES

General-Purpose Micro Switches 2P2T, with Phenolic Housing for High Temp Application, 15A 125/250VAC



2P2T General Purpose Micro Switches for Industrial Applications

Different Lever or Roller Actuator Available

Consult the Factory for Optional High Temp Applications up to 200ºC
加入詢問
Feature



  • 15A 125/250VAC (UL,CUL,CCC,CE)
  • 3/4HP 125VAC, 1-1/2HP 250VAC 250VAC (UL,CUL,CCC,CE)
  • Temperature rating: 105ºC standard (150ºC & 200ºC optional)
  • Flammability rating: UL94V-0
  • Case: Phenolic
  • Actuating Button: Thermoplastic Nylon
  • Common Terminals: Brass
  • Moving Blade: Brass
  • Spring: Stainless Steel
  • Auxiliary Actuators: Cold-Rolled Steel (Nickel-Plated)
  • Roller: Sintered Stainless Steel
  • Contacts: Silver-Cadmium Oxide
  • Safety approved internationally by UL,CUL,CCC,CE
  • HP rating up to 1-1/2HP 250VAC
  • Choice of actuator styles
  • Solder, quick-connect and optional screw terminal
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature up to 150ºC & 200ºC
  • 2NO or 2NC is available upon request



Item

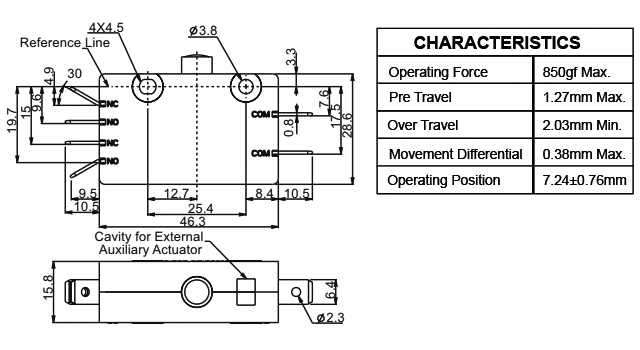

S-19E

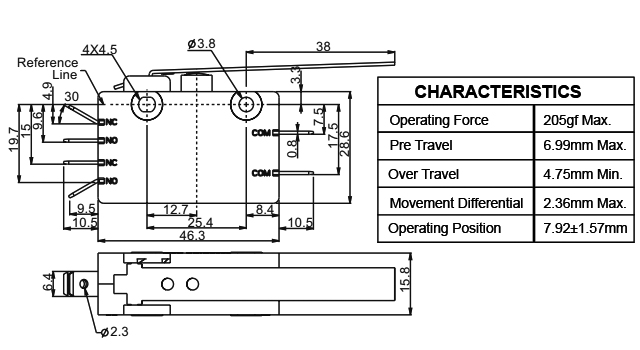

S-19H

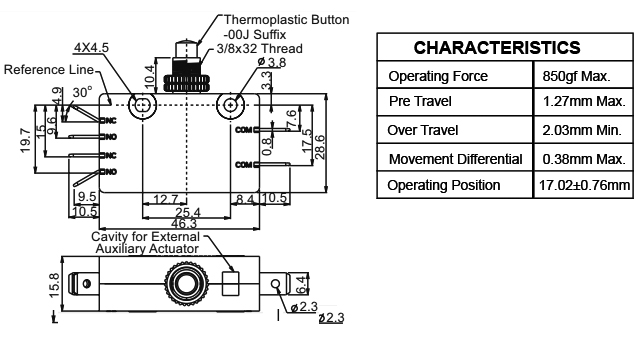

S-19J

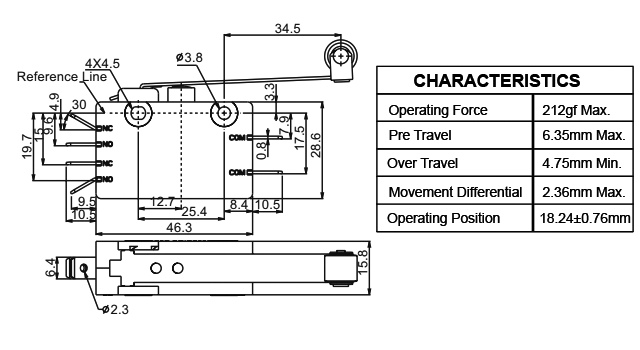

S-19K

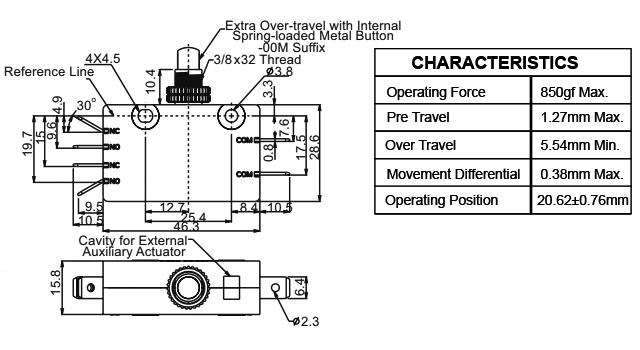

S-19M
