モデル：S-14 SERIES
S-14 SERIES

General-Purpose Micro Switches SPDT, with Phenolic Housing for High Temp Application, 25A 125/250VAC



SPDT, SPST NO, SPST NC, General Purpose Micro Switches for Industrial Applications

Different Lever or Roller Actuator Available

Consult the Factory for Optional High Temp Applications up to 200ºC
加入詢問
Feature



  • 25A 125/250VAC (UL,CUL,CCC,CE)
  • 1HP 125VAC, 2HP 250VAC (UL,CUL,CCC,CE)
  • Temperature rating: 105ºC standard (150ºC & 200ºC optional)
  • Flammability rating: UL94V-0
  • Case: Phenolic
  • Actuating Button: Thermoplastic Nylon
  • Terminals: Silver-Plated Brass
  • Moving Blade: Silver-Plated Beryllium Copper
  • Spring: Stainless Steel
  • Auxiliary Actuators: Cold-Rolled Steel (Nickel-Plated)
  • Roller: Sintered Stainless Steel
  • Contacts: Silver-Cadmium Oxide
  • Safety approved internationally by UL,CUL,CCC,CE
  • HP rating up to 2HP 250VAC
  • Choice of actuator styles
  • Solder, quick-connect and optional screw terminal
  • 3 contact arrangements
  • Long-life coil spring mechanism
  • High-temperature up to 150ºC & 200ºC
  • SPDT, SPST NO, SPST NC is available upon request
  • 30A model available on request



Item

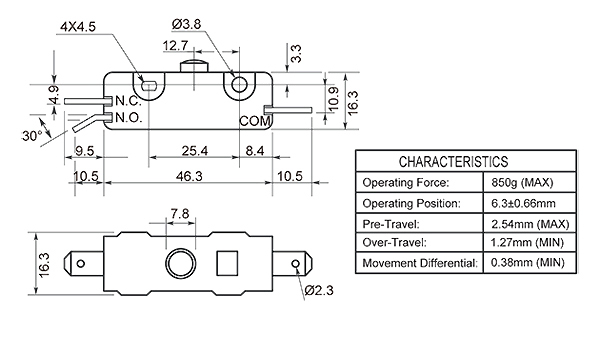

S-14E

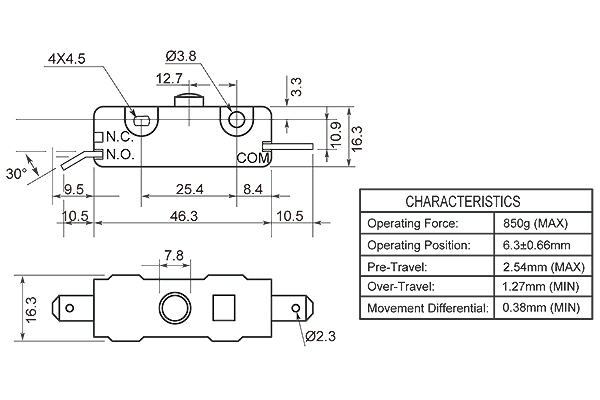

S-14E1

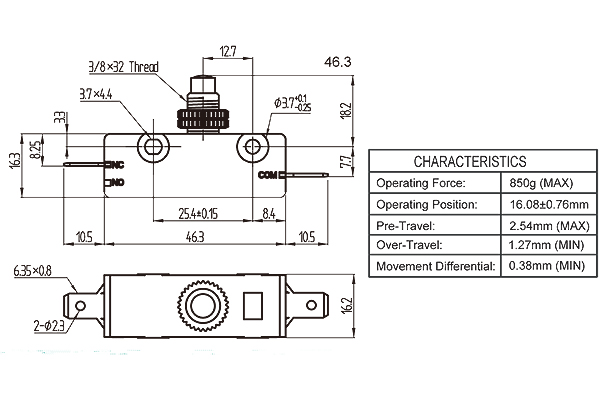

S-14J2
