モデル：RZ SERIES
RZ SERIES
General Purpose Limit Switches 15A in UL/CUL, Pillar, Lever or Roller Actuator available
General purpose limit switches 15A in UL/CUL
Various types of Actuators available
SPDT with screw terminals
Heavy Duty design with long mechanical life
加入詢問
General Purpose Limit Switches 15A in UL/CUL, Pillar, Lever or Roller Actuator available
General purpose limit switches 15A in UL/CUL
Various types of Actuators available
SPDT with screw terminals
Heavy Duty design with long mechanical life
Feature
- 15A 125/250VAC (UL/CUL)
- 1/8HP 125VAC, 1/4HP 250VAC
- 1/2A 125VDC, 1/4A 250VDC
- Initail contact resistance: 15m ohm (max.)
- Insulation resistance : 100M ohm (min,) at 500VDC
- Dielectric strength : 1,000VAC for 1 minute
- Safety approved internationally by UL/CUL North America,
- CE in Europe, CQC/CCC in Asia
- Mechanical life: from 1M cycles up to 20M cycles(pillar type),
- Ambient temperature & humidity: -25°C~80°C, 85%RH
Specification

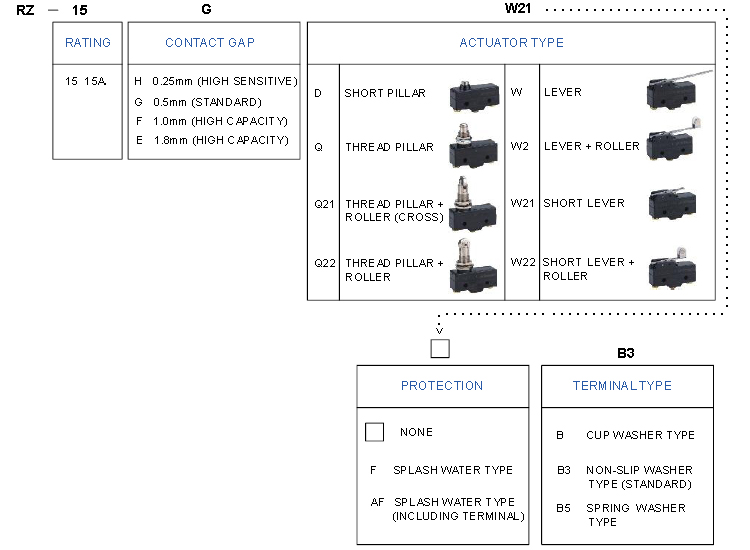

How to order
Item
|

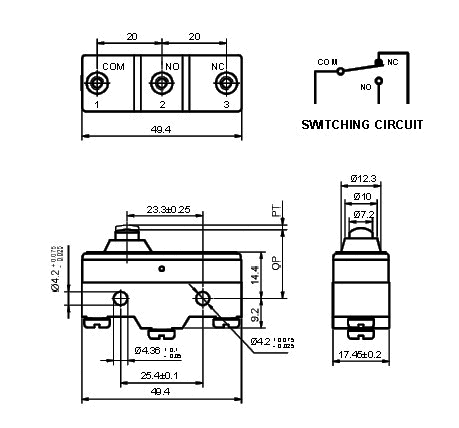

RZ-15GD-B3 OP: 21.5 +/- 0.5mm PT(max): 0.4mm |
 |
|

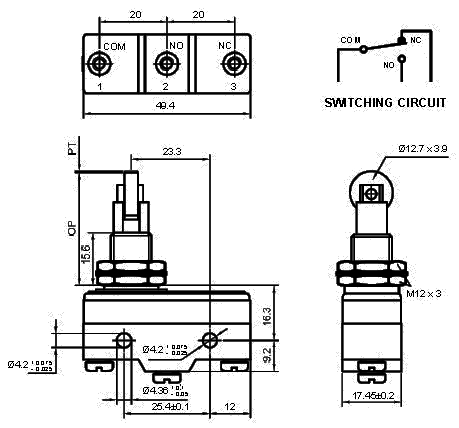

RZ-15GQ21-B3 OP: 33.4 +/- 1.2mm PT(max): 0.4mm |
 |
|

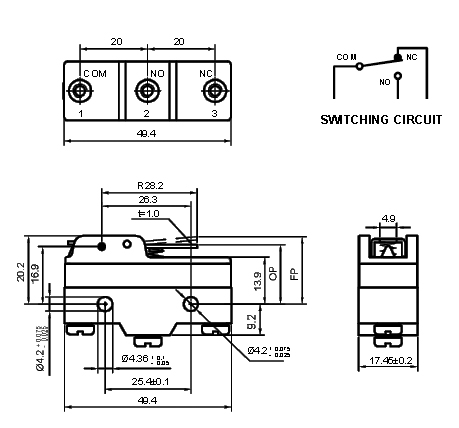

RZ-15GW21-B3 OP: 19 +/- 0.8mm FP(max): 24.8mm |
 |
