モデル：M142 Series
M142

Snap Action Micro Switches Uo to ENEC 25A



Snap Action Micro Switches Up to UL 22.5A 250VAC

SPDT, SPST, ON-(ON), OFF-(ON) or ON-(OFF)
加入詢問
Feature



  • 22.5A 125/250VAC (UL/CUL)
  • 16A 125/250VAC (UL/CUL)
  • 20(8)A 250VAC (5E4) (Nemko,ENEC)
  • 16(8)A 250VAC ~T125 (Nemko,ENEC)
  • 25(10)A 250VAC ~T125 (Nemko,ENEC)
  • Contact resistance : 20m ohm initial (max.)
  • Dielectric strength : 1,000 VAC for 1 minute
  • Insulation resistance : 50M ohm min.(at 500 VDC).
  • Mechanical life cycle : 500,000
  • Loaded life cycle : 10,000
  • Plunger: PBT
  • Cover: PBT 94V-0 (min)
  • Base:PBT 94V-0 (min)
  • Terminal : Tin or silver plated copper alloy
  • Contact : Silver alloy clad copper alloy & silver copper
  • Spring : Steel wire
  • Movable contacts : Tin or silver plated copper alloy



Specification

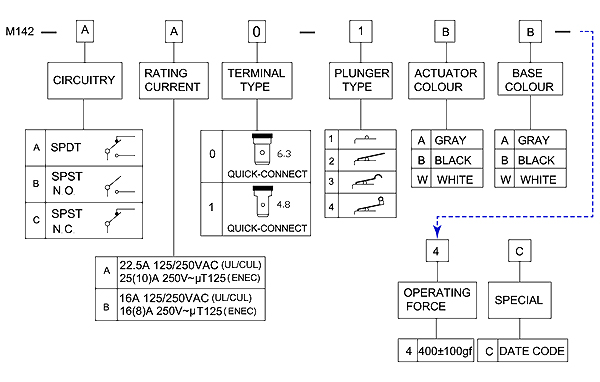

How to order

Item

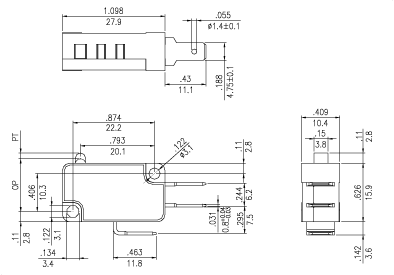

M142-AA1-1BB-4C

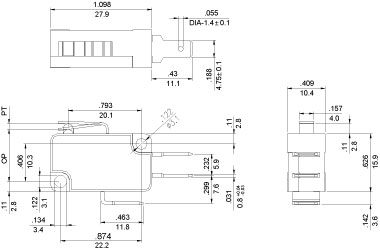

M142-AA1-2BB-4C5

M142-AA1-2BB-4C4

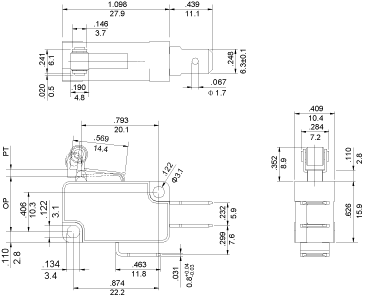

M142-AA0-4BB-4C6
