DM, 12.8X6.5mm

モデル：DM Series

DM Series

Sub-miniature Snap Action Switches, 5A 125/250VAC, 0.1A 48VDC in UL, CUL&ENEC Approvals

Subminiature snap action switches up to 5A 125/250Vac

DC rating to 30VDC or 48VDC

SPDT, PCB or solder terminals

Standard lever or customized Lever upon request

加入詢問

Feature

5GPA,3GPA,1.5GPA,0.1GPA 125VAC, 2RA 30VDC (cURus)
5A 125/250VAC 40μT85 3E4, 2RA 30VDC 40μT85 3E4 (ENEC05,CQC)
0.1RA 48VDC (cURus),0.1RA 30VDC 40μT85 (ENEC05,CQC) (optional)
Contact resistance : 100m ohm initial (max.)
Insulation resistance :500VDC 100M (min.)
Dielectric strength : 600 VAC for 1 minute
Insulation resistance : 100M min.(at 500 VDC).
Loaded life cycle : 10,000 (cURus); 30,000 (ENEC,CQC)
Mechanical operating frequency : 120//min.
Electrical operating frequency : 30/min

Sub-Miniature Snap-Action, size 12.8x5.8x6.5mm
Safety approved internationally by UL in North America, ENEC in Europe, CQC in Asia.
SPDT circuit
With or without auxiliary actuator
Solder and PC terminals
Optional operating force
Screw or PCB mounting

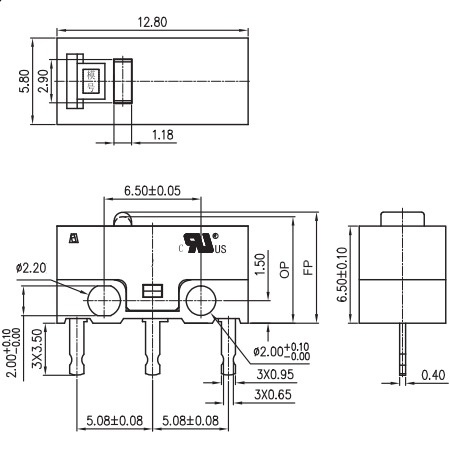

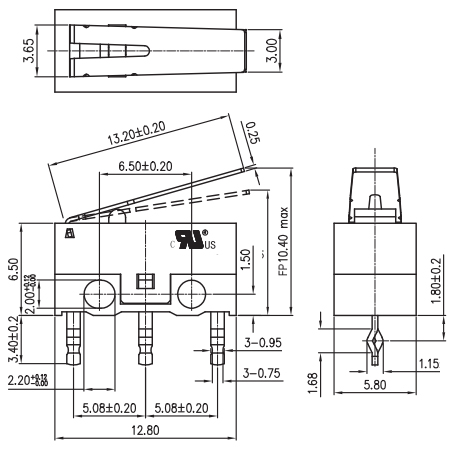

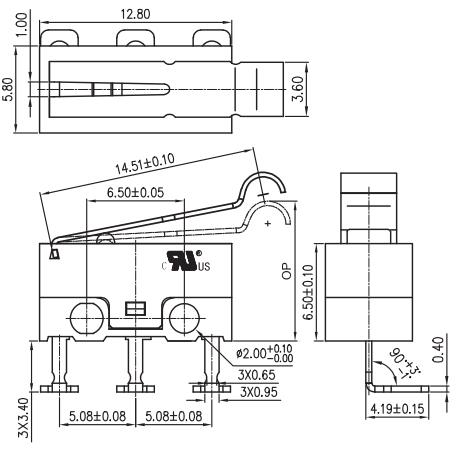

Specification

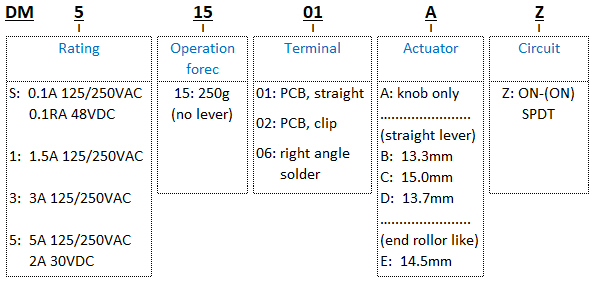

How to order
