モデル：HB-Series
HB-indicator
Indicator Light for Standard American Style Switch Cutout, with LED or Neon Lighted, DC or AC
Indicator light for standard american style switch cutout
Illumination built by LED for long life or
Neon Light to give a traditional effect
Can be applied for DC or 125/250VAC
加入詢問
Indicator Light for Standard American Style Switch Cutout, with LED or Neon Lighted, DC or AC
Indicator light for standard american style switch cutout
Illumination built by LED for long life or
Neon Light to give a traditional effect
Can be applied for DC or 125/250VAC
Feature
- Insulation resistance : 100M ohm (min,)
- Dielectric strength : 1,000VAC for 1 minute
- Lamp: LED, 12VDC
- Base : Nylon 66, UL rated 94V-2 min
- Actuator : PC, UL rated 94V-2 min
- Fixed terminals: Tin plated Copper alloy
- Neon lamp: DIA-4.8X10.0mm

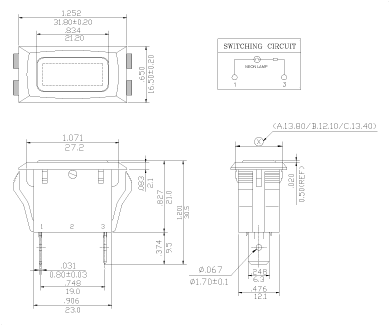

Specification

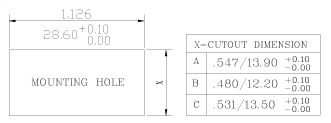

Mounting hole
Item
NF.gif)
